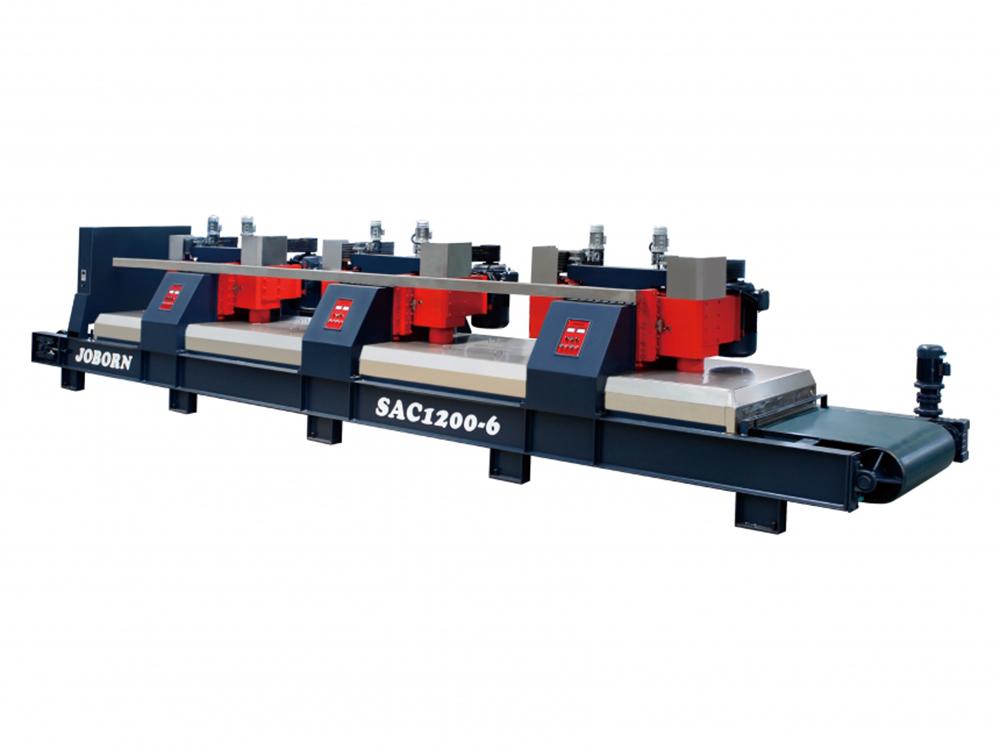

The SAC series stone continuous calibrating machine features many calibrating heads, which can be two to six according to customer requirements, so the machine can complete multi-level operations with higher efficiency. It is called a continuous calibrating machine because it adopts continuous slab feeding. The calibrating machine is suitable for calibrating marble, granite and artificial stone.

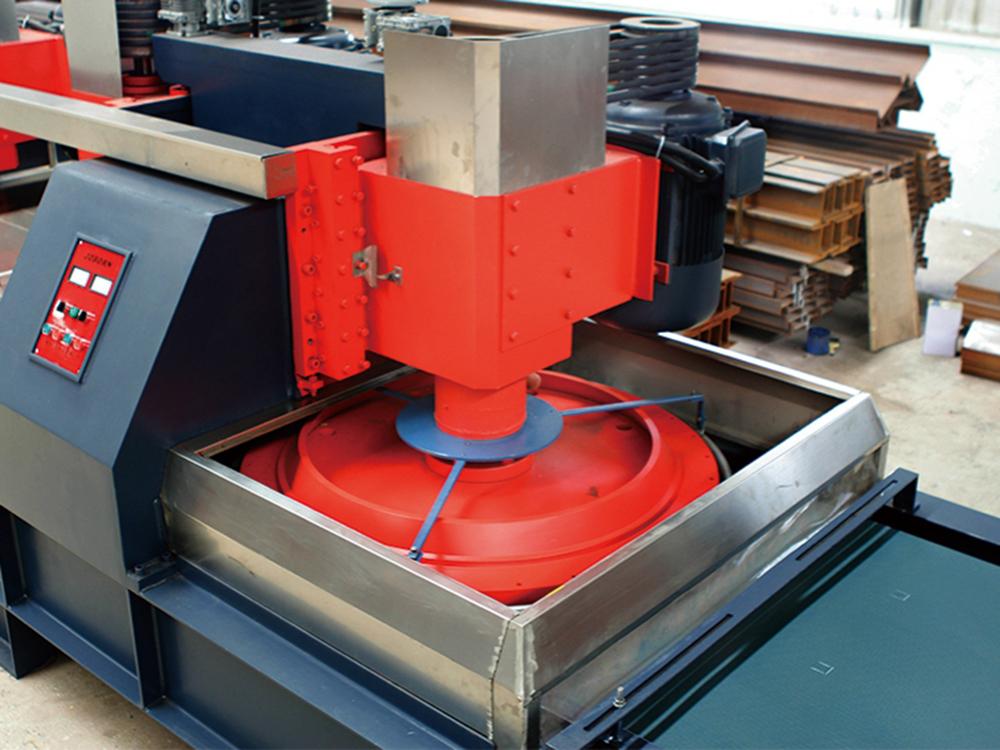

Adopting a high speed rotational cutter to cut, the stone surface has a fixed thickness and is very flat.
We offer calibrating machines with different specifications for different processing targets.
SpecificationsCalibrating head diameter | mm | 880 | 1080 | 1280 |
Processing width | mm | 300~850 | 300~1050 | 300~1250 |
Calibrating head lifting stroke | mm | 90 | ||
Processing thickness | mm | 10~60 | ||
Number of calibrating head (Optional) | pcs | 2 or 4 or 6 | ||
Water consumption | m³/h | 8 or 16 or 24 | ||
Power of each calibrating spindle | kW | 18.5 or 22 |
JOBORN has a professional team with more than 20 years of stone processing equipment experience. To date, we have produced more than 30 thousand pieces of stone equipment, giving us significant insight into the needs of customers and provide them with the best possible machinery.

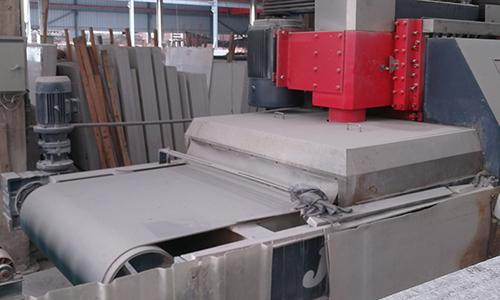

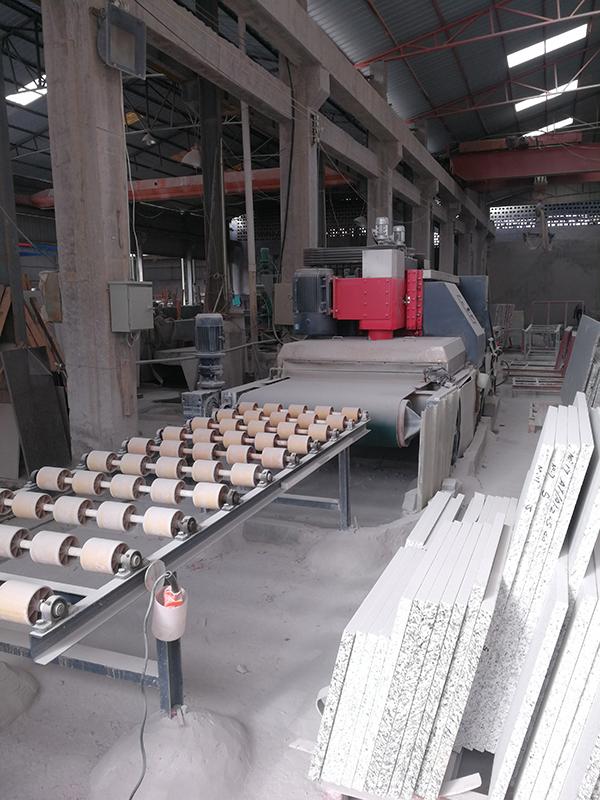

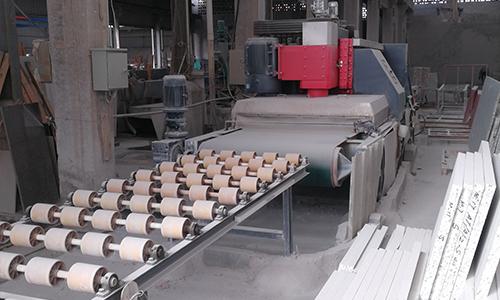

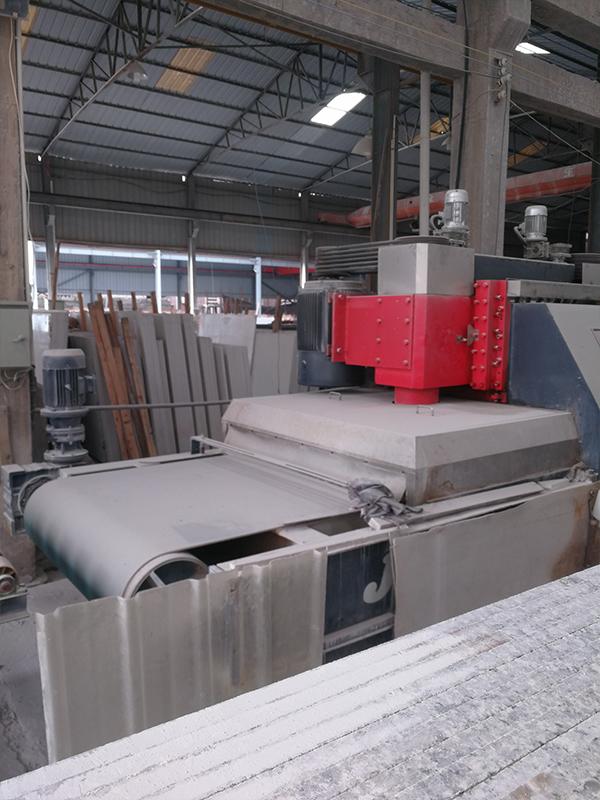

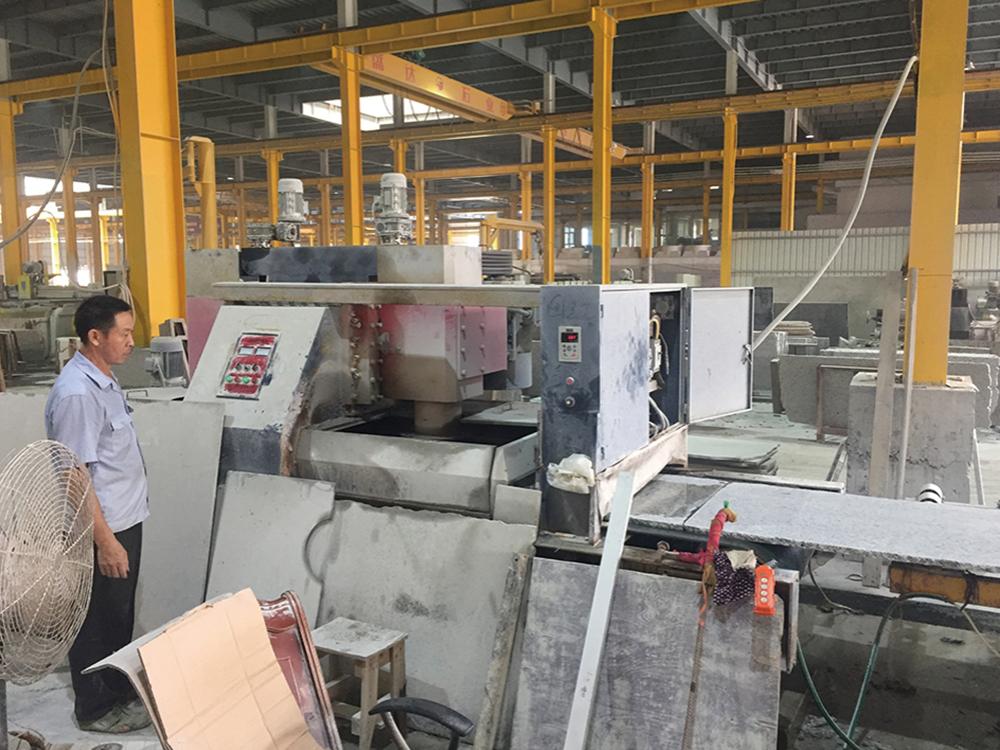

Used in our customer's factoryFujian JOBORN MACHINERY Co., Ltd.
