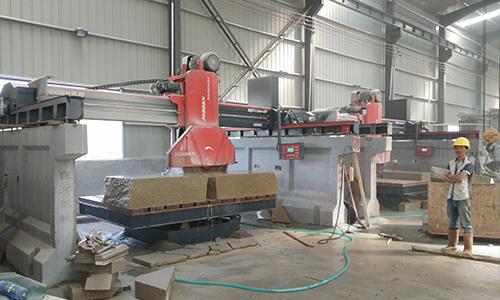

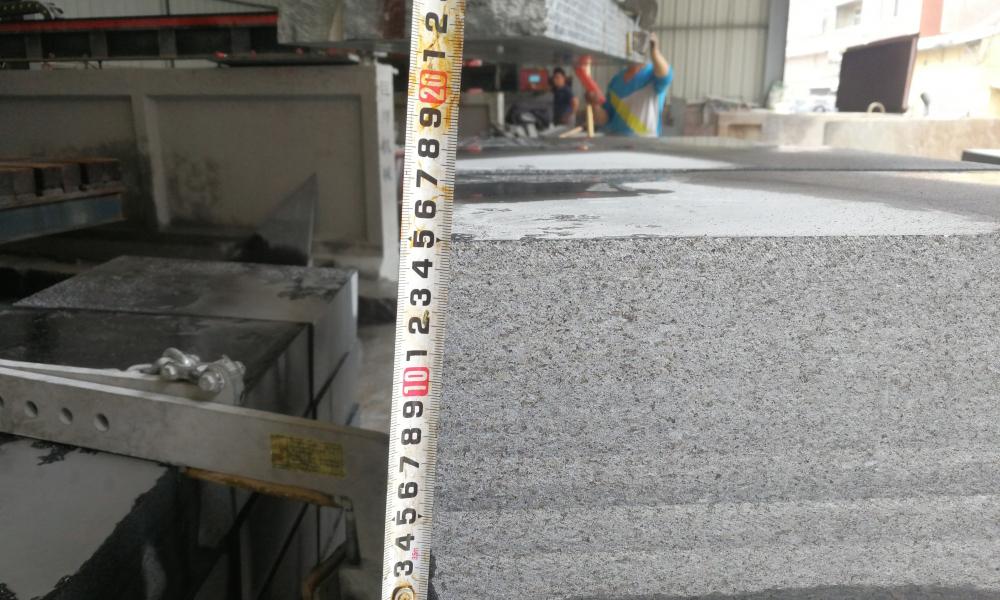

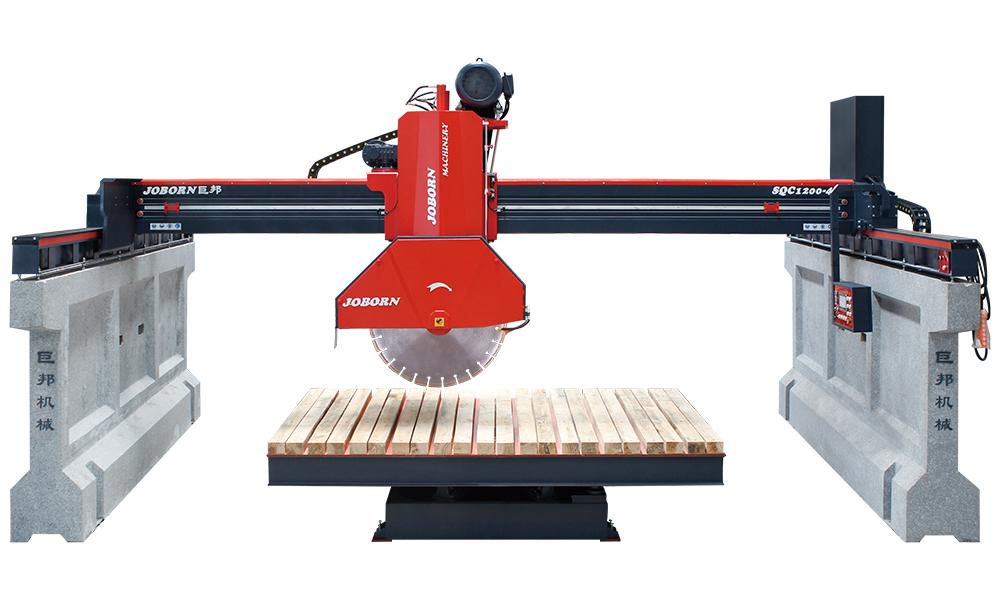

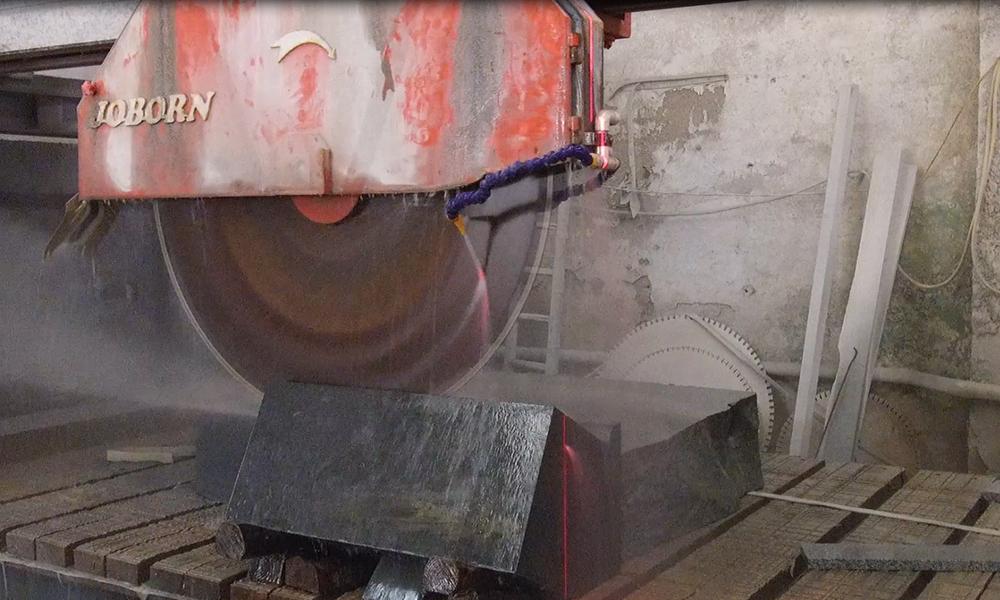

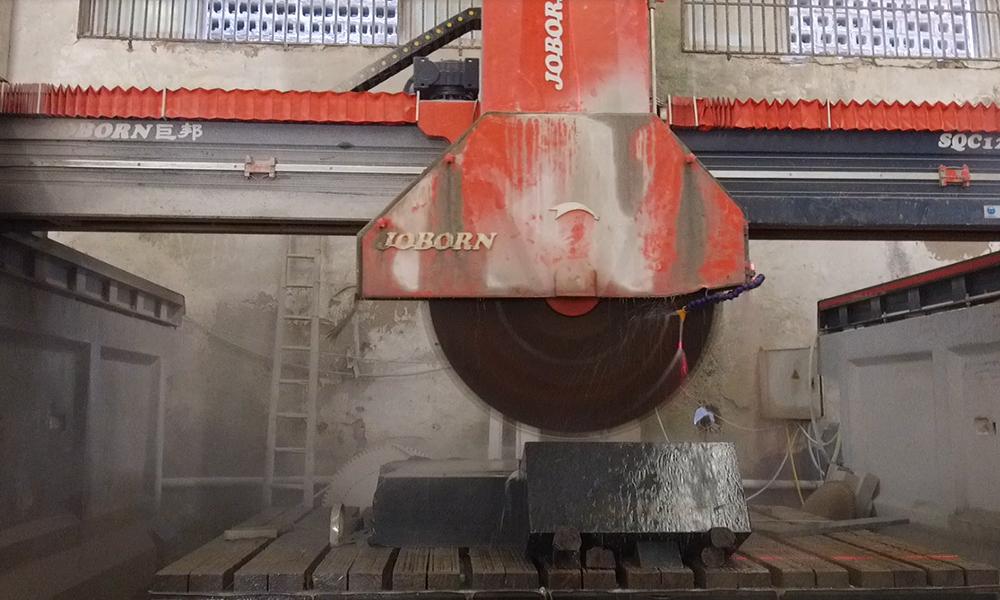

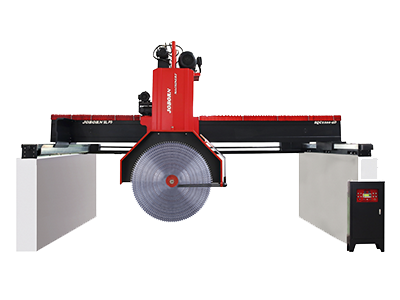

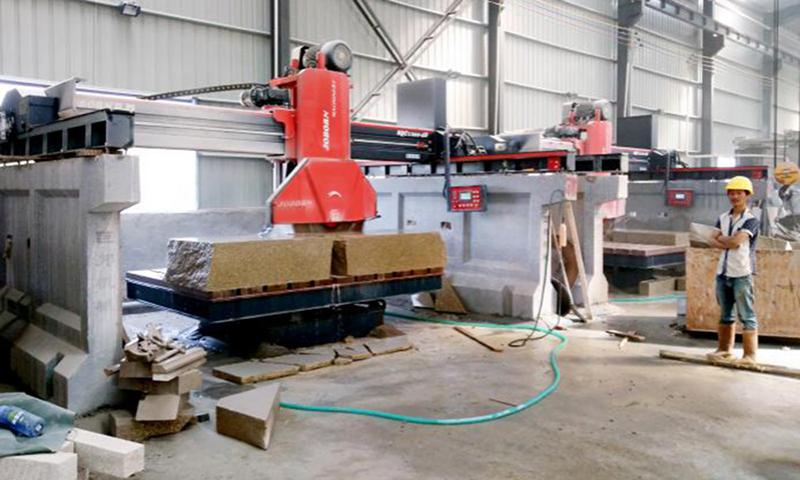

Equipped with a 1200mm diameter blade and a large span bridge structure design, the middle block cutting bridge saw, marble and granite cutting saw is suitable for cutting extra-large stone pieces. Adopting a microcomputer control system and an intuitive interface, the bridge saw is positioned by the infrared laser alignment device and adjusted by German Bosch frequency converter. The stone cutting machine is easy to use to achieve precise cutting. Designed by professional Italian industrial design team, with special paint and spray paint technology. A multi-layer antirust and anticorrosion treatment is applied, this kind of stone cutting machine has strong oxidation resistance.Cutting effect
|Max. disc diameter||mm||Φ1200|
|Max. lifting stroke||mm||750|
|Worktable rotation range (Optional)||0°, 90° / 0°～360° (Set up by each 45°)|
|Max. processing height||mm||450|
|Power of main motor||kW||22/30|
|Weight||kg||7200 (8600kg includes steel stand )|

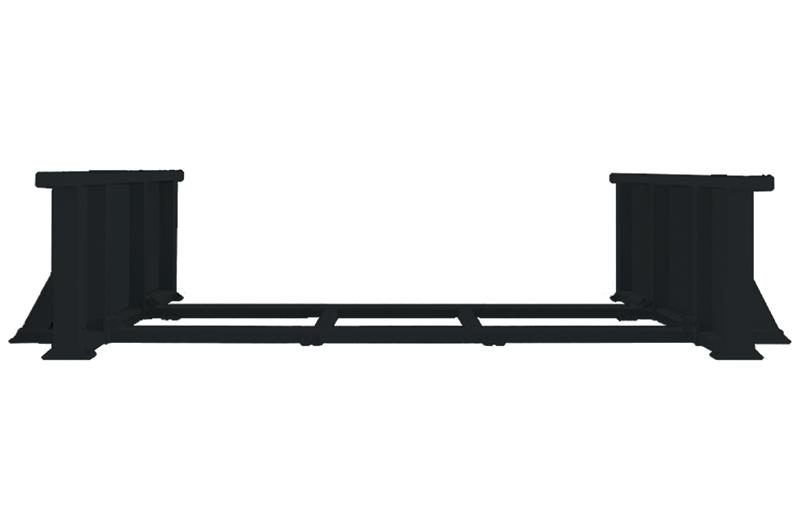

Rigid steel stand (optional) for enhancing the operation stability of cutting equipment

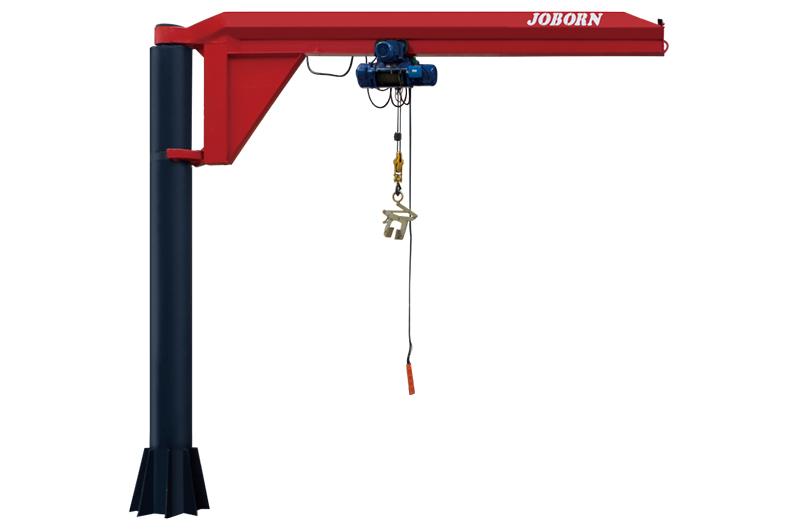

Jib crane (optional) for lifting the finished stones

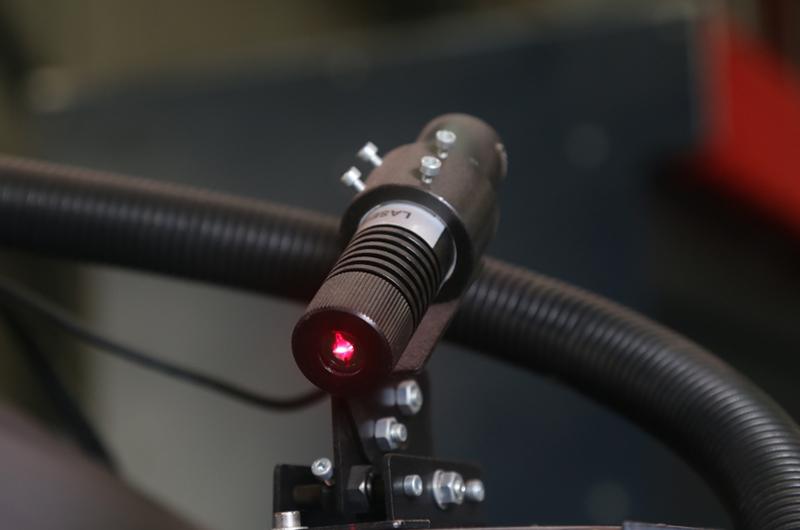

Infrared laser alignment device for realizing precise positioning

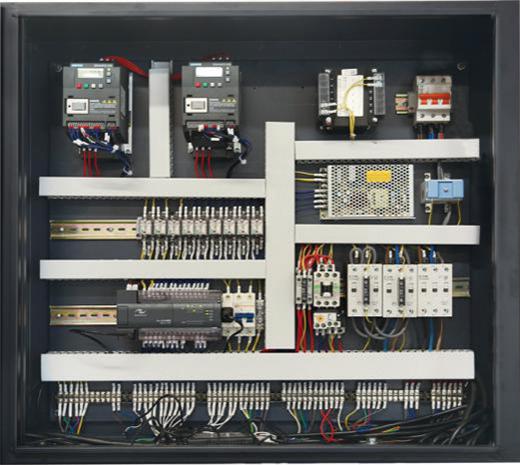

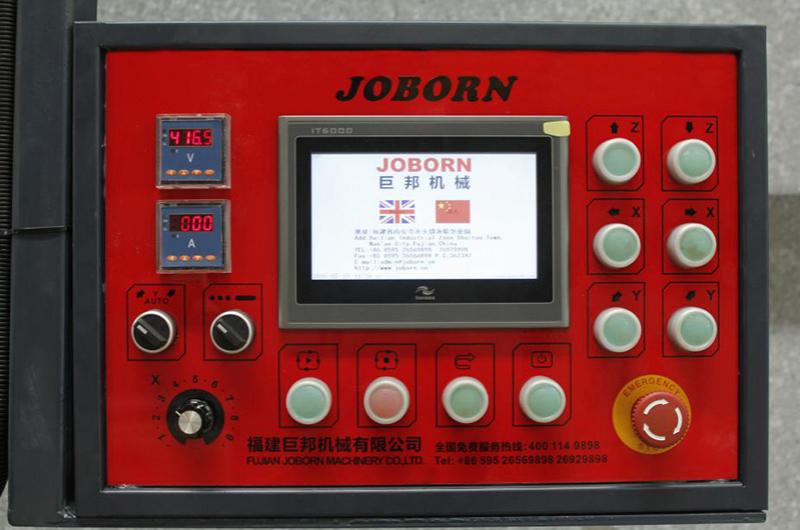

With a humanized human-computer interaction interface, the stone cutting bridge saw is simple to operate and highly precise.

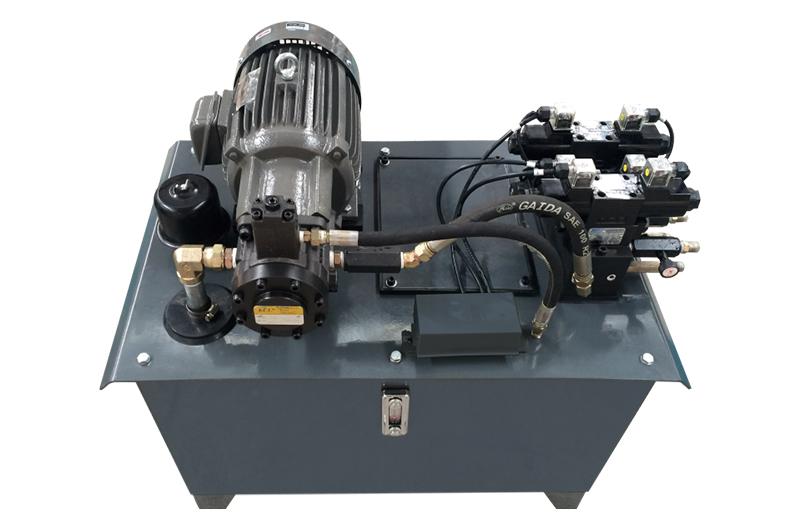

Hydraulic components made in Taiwan
With the blade controlled by dual hydraulic system made in Taiwan to go up and down, the bridge saw works stably.

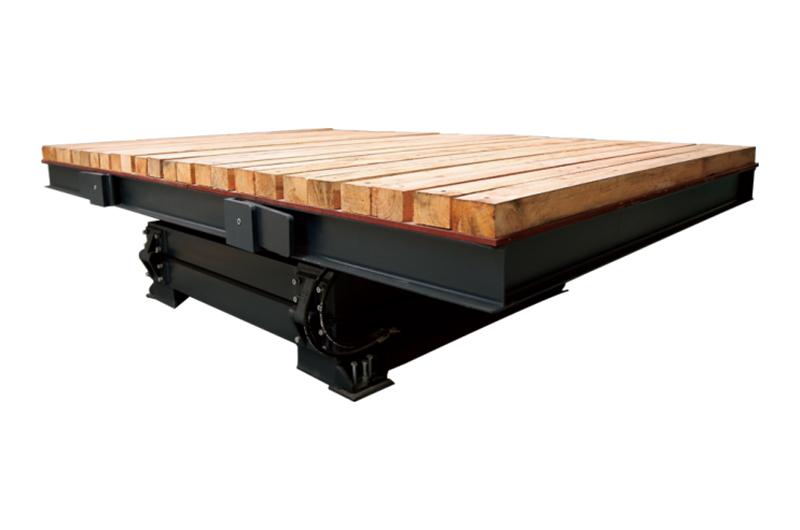

Super heavy worktable
With the worktable welded from ultra-heavy structural sections, the worktable has a larger load capacity and is more durable compared to common worktables.

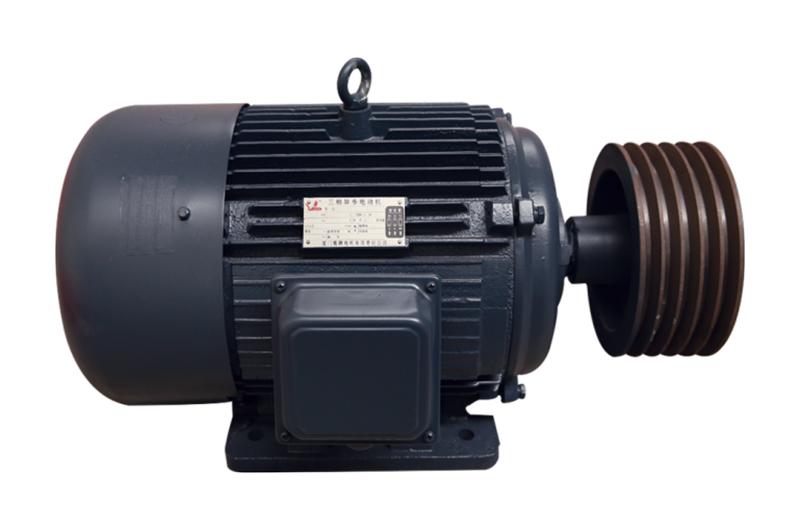

High efficiency main motor
With an energy-efficient main motor, the bridge saw is powerful and electricity saving, which saves cost for customers for long time use.
German Bosch frequency converter
Controlled by the German Bosch frequency converter to go left and right, the head can adjust speed according to different materials.
