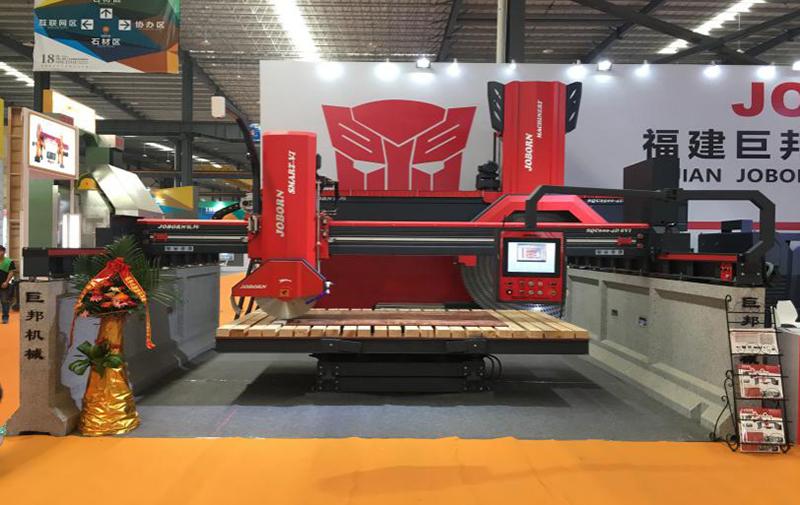

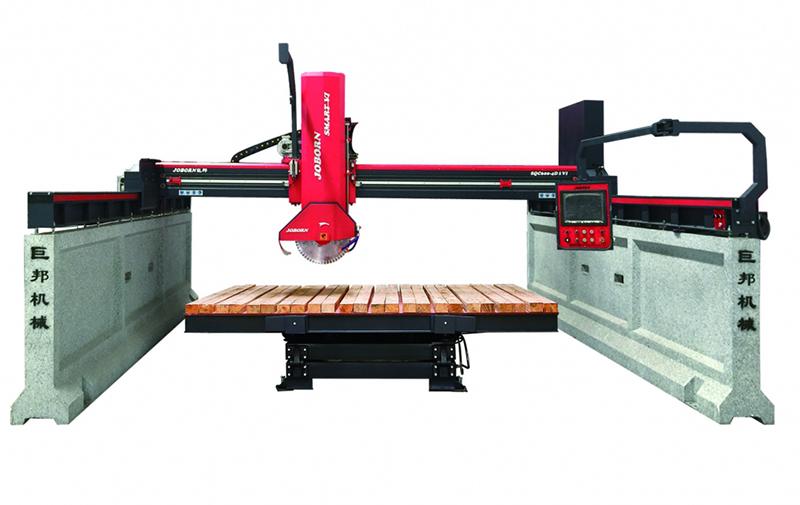

SVI Stone Cutting Saw, Granite Cutting Bridge Saw
- Materials suitable for cutting: stone slab such as granite, sandstone, artificial stone, limestone, travertine and marble.
- Size suitable for cutting: 3.2m x 2m
- Optional blade diameter: 450mm, 600mm, 700mm
- Cutting depth: 100mm, 180mm, 230mm
- Weight: stone slab with less than 3 tons
Equipped with an SVI visual system on the basis of the infrared stone cutting machine, the SVI granite cutting machine can receive and process data through the visual system, and can cut extra thin stone slabs. The stone cutting equipment can typeset, rotate the worktable and record working processes automatically.

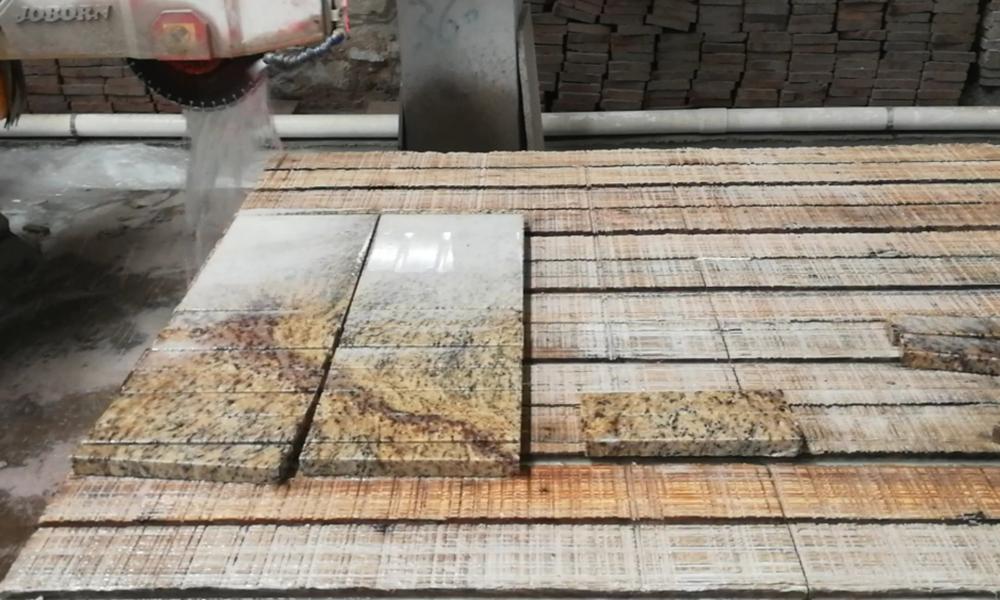

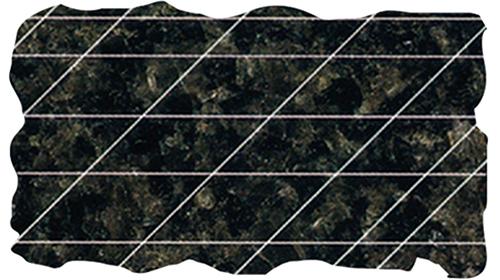

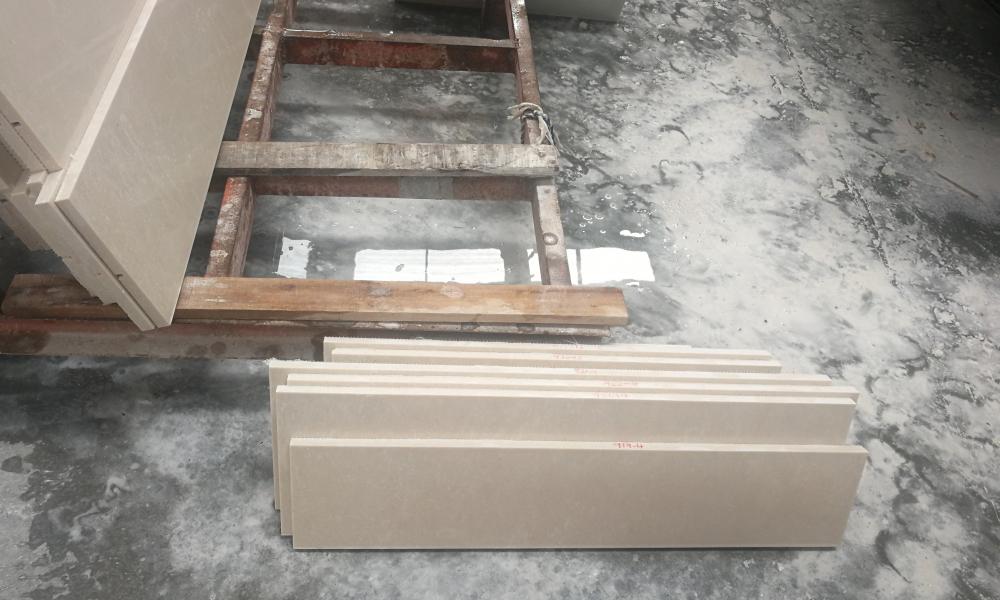

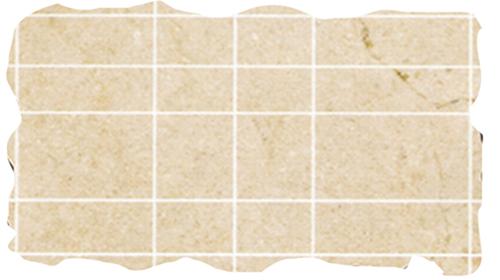

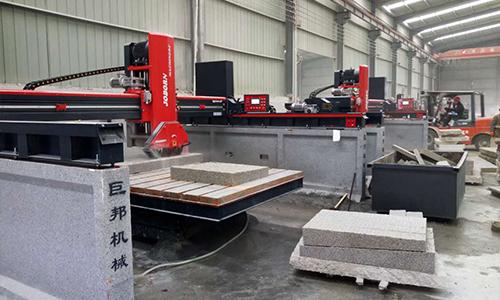

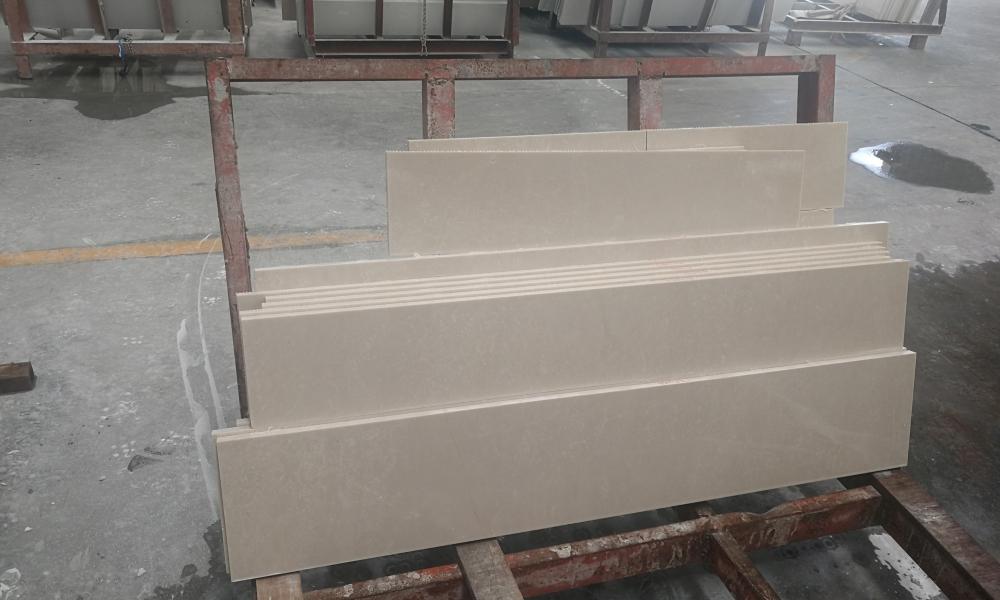

Cutting effect
Cutting effect of 90 degrees worktable
Cutting effect of 360 degrees worktable
| Appellation | Unit | SQC450-4D SVI | SQC600-4D SVI | SQC700-4D SVI |
| Max. disc diameter | mm | Φ450 | Φ600 | Φ700 |
| Max. lifting stroke | mm | 220 | 350 | 470 |
| Worktable size | mm | 3200×2000 | ||
| Worktable rotation range (Optional) | 0°, 90° / 0°～360° (Set up by each 45°) | |||
| Worktable turn-over degree | 85° | |||
| Max. processing height | mm | 100 | 180 | 230 |
| Water consumption | m³/h | 3 | ||
| Power of main motor | kW | 15 | 18.5 | 22 |
| Total power | kW | 21 | 24.5 | 28 |
| Dimension (LxWxH) | mm | 6000×4800×3200 | 6000×4800×3200 | 6000×4800×3400 |
| Weight | kg | 5700 (6500kg includes steel stand) | 5800 (6600kg includes steel stand) | 5900 (6700kg includes steel stand) |

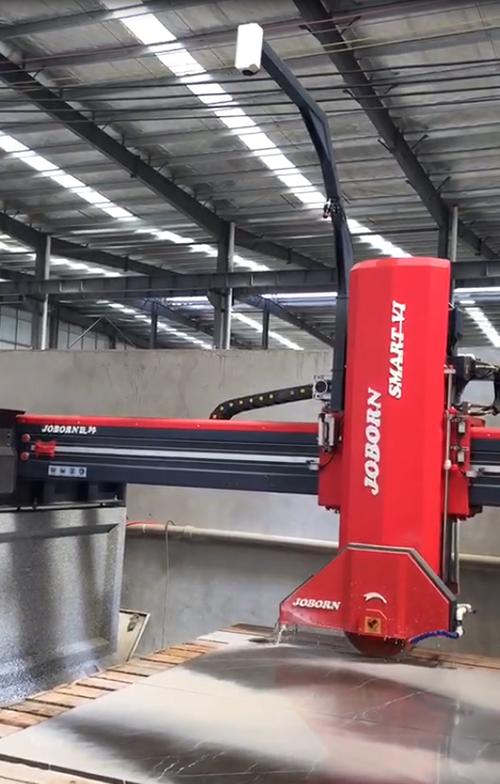

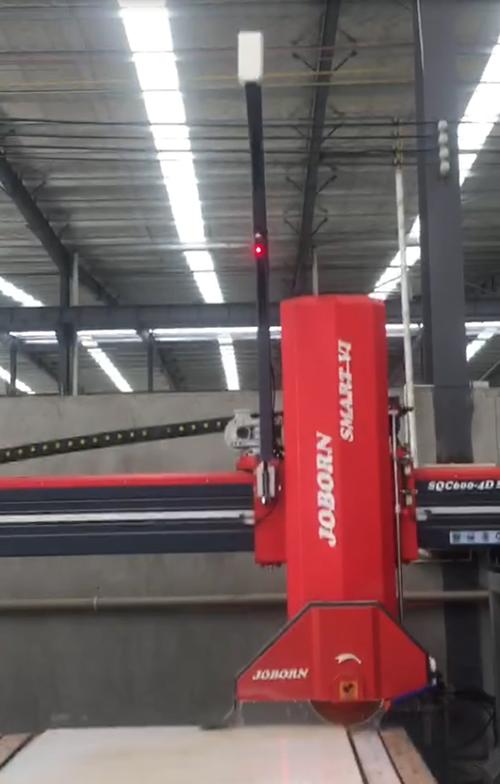

SVI intelligent visual system
SVI intelligent visual system

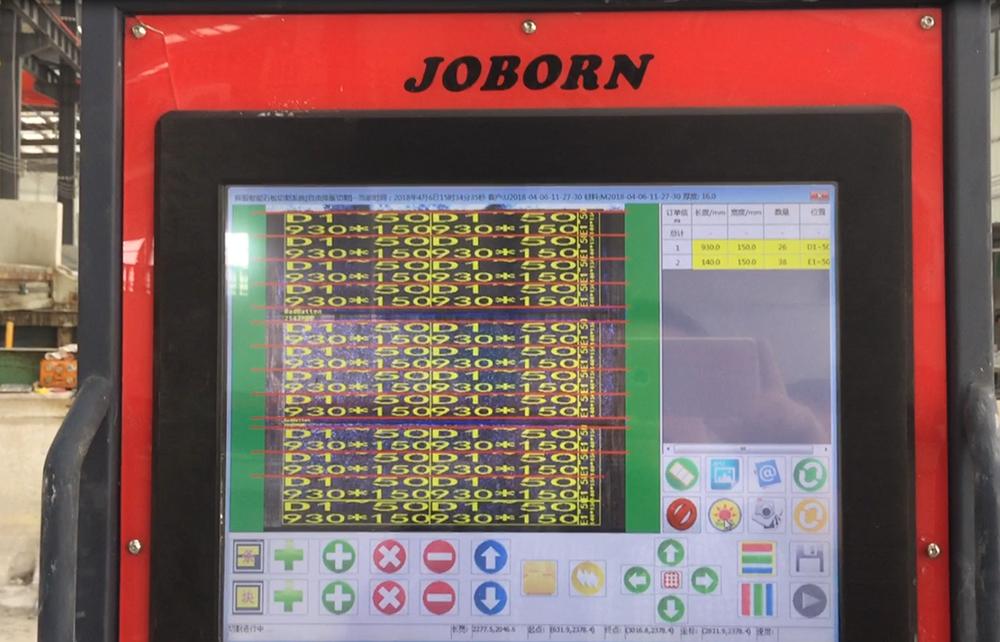

Human-machine communication interface

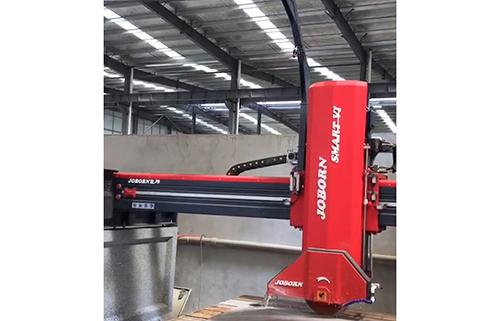

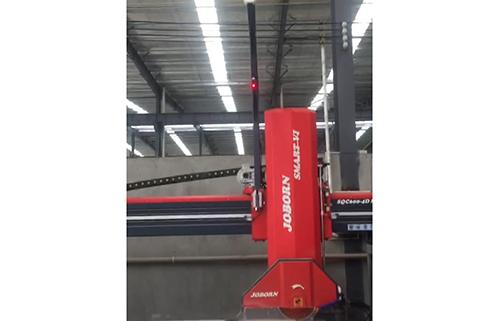

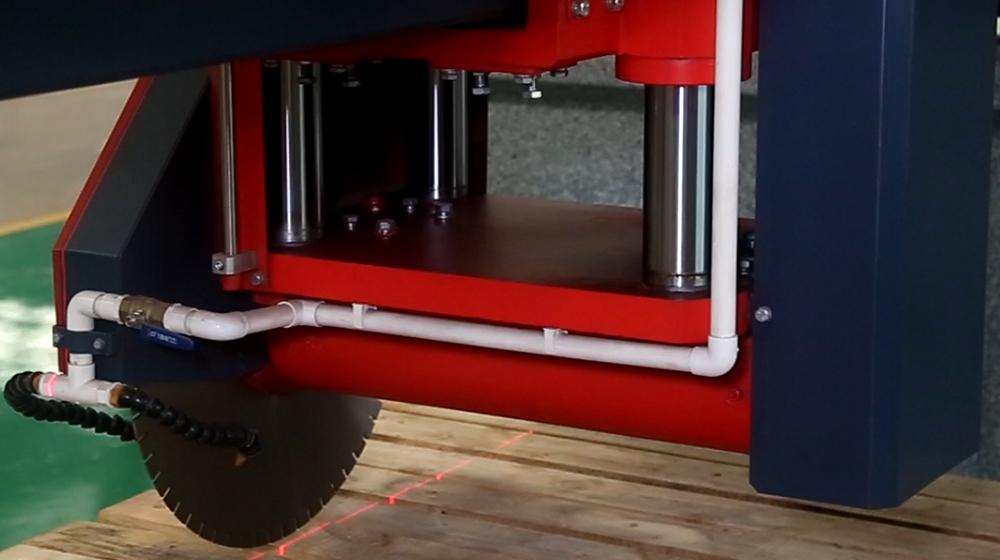

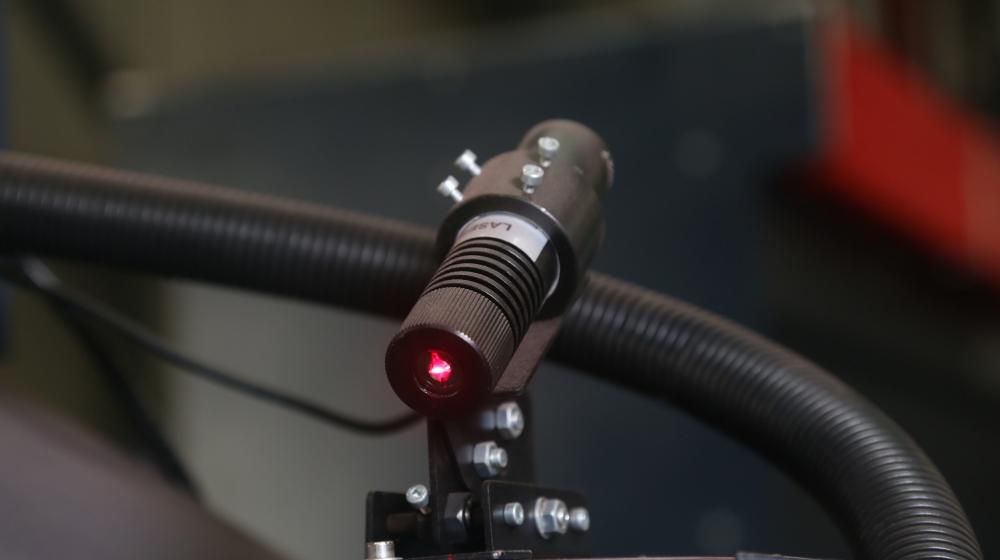

Infrared laser alignment device
Chrome-plated guide pin
Wear-resistant guide bush
Details of the equipment

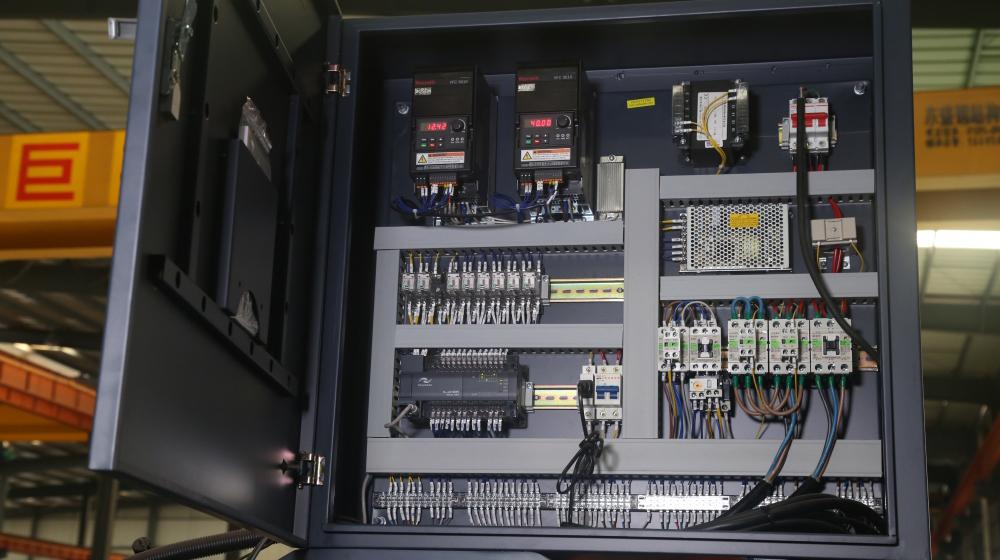

German Bosch frequency converter
Controlled by the German Bosch frequency converter to go left and right, the head can adjust speed according to different materials.

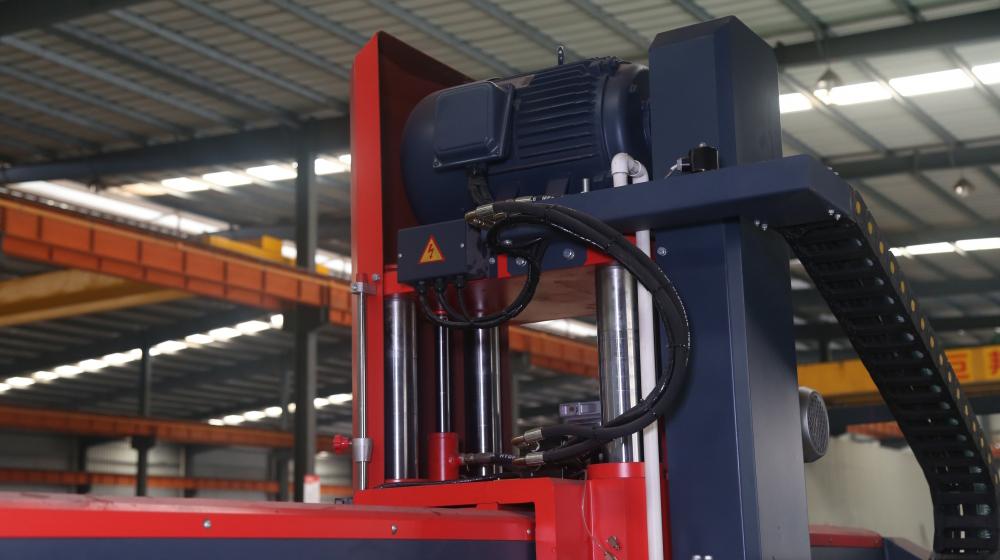

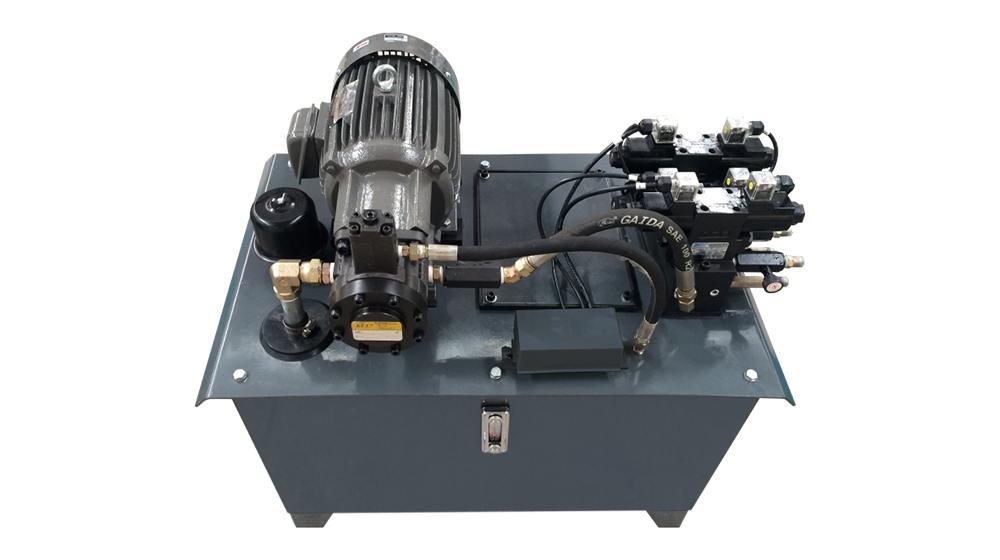

Dual hydraulic system
With the blade controlled by dual hydraulic system made in Taiwan to go up and down, the bridge saw works stably.

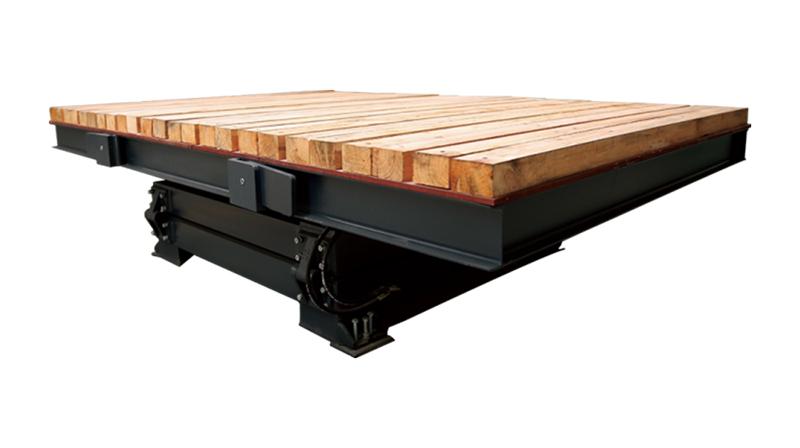

Worktable
With the worktable welded from ultra-heavy structural sections, the worktable has a larger load capacity and is more durable compared to common worktables.

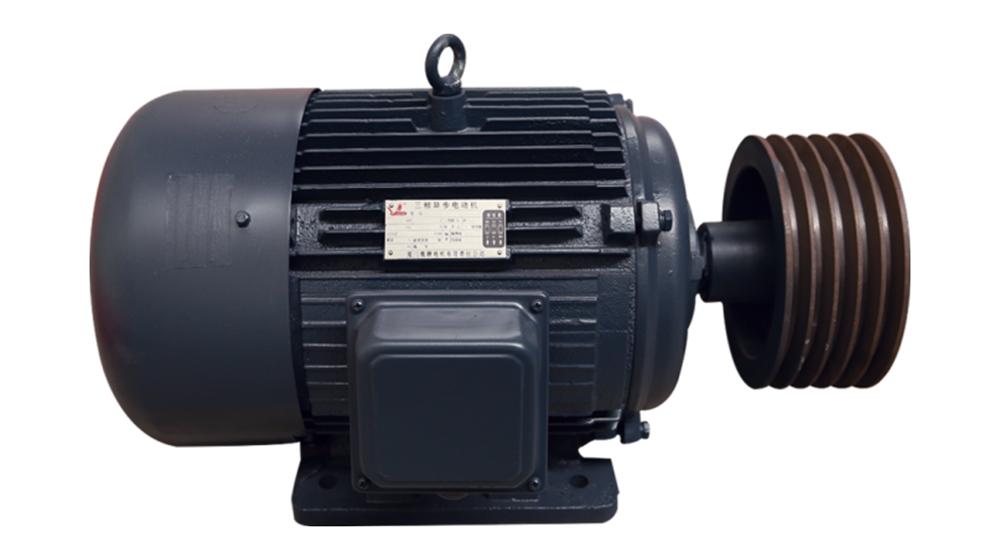

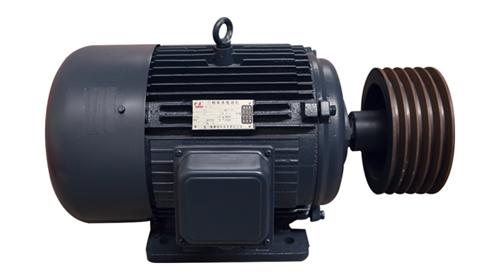

Main motor
With an energy-efficient main motor, the bridge saw is powerful and electricity saving, which saves cost for customers for long time use.
