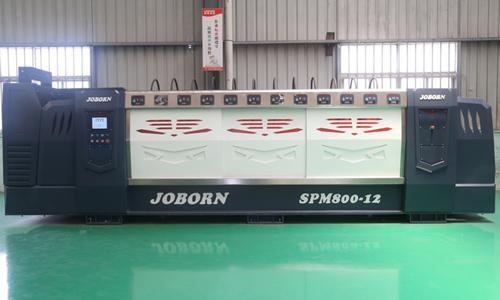

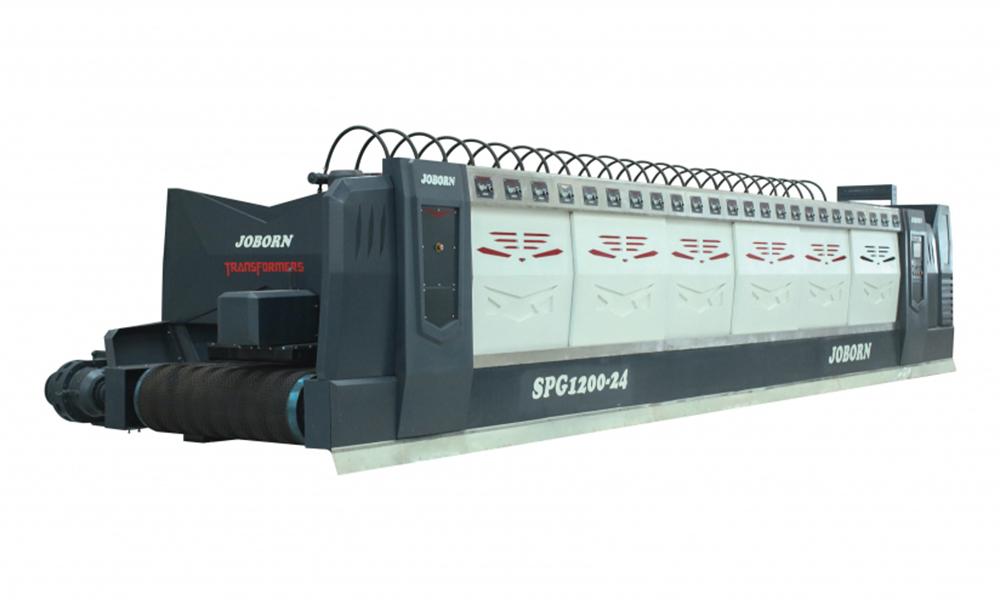

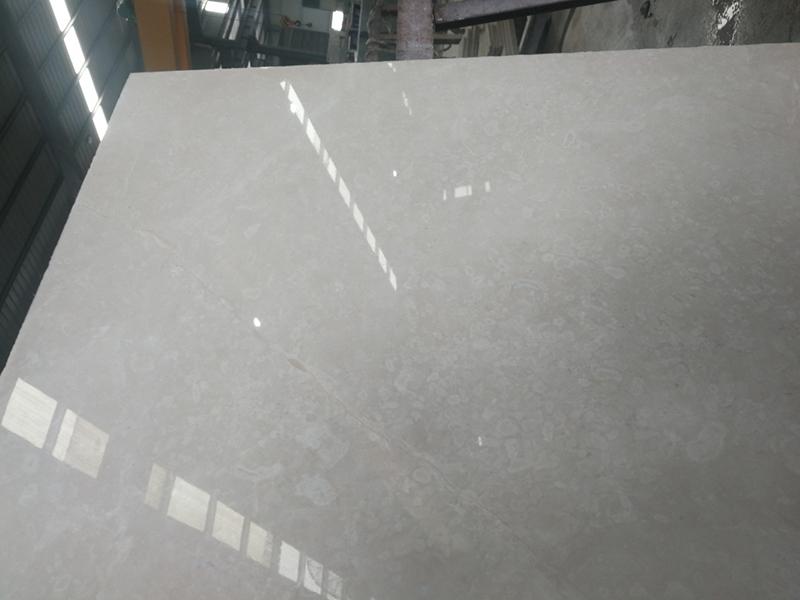

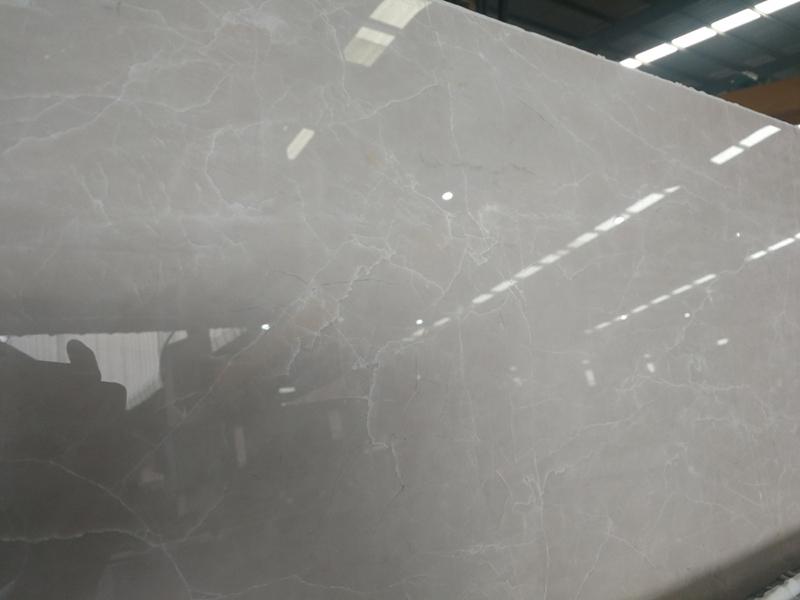

This is a large fully automatic stone polishing and grinding machine which has been designed and used for surface grinding and polishing of marble with 0.8 to 2.2m width. The machine can be equipped with 12-24 granite polishing heads and 12-24 main motors whose power is 15 kW according to customer needs. Therefore, the machine can meet the needs of large stone processing factories.Polishing effect
|Max. processing width||800-2200mm|
|Max. processing height||60 mm|
|Belt advanced speed||0～3.5 m/min|
|Number of grinding head||12or16or20or24 pcs|
|Water consumption per hand||1.5 m³/h|
|Air consumption per hand||1 m³/h|
|Power of a main motor||15 kW|
|Total power||the number of motors*15+35 kW|
|Length||11.6 or 14.2 or 16.8 or 19.4 m (optional)|

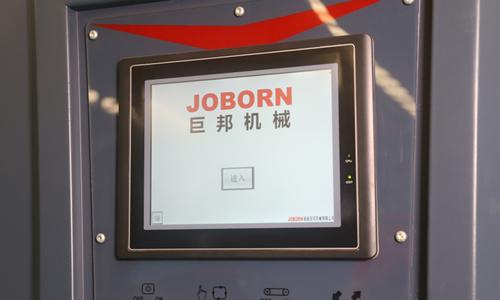

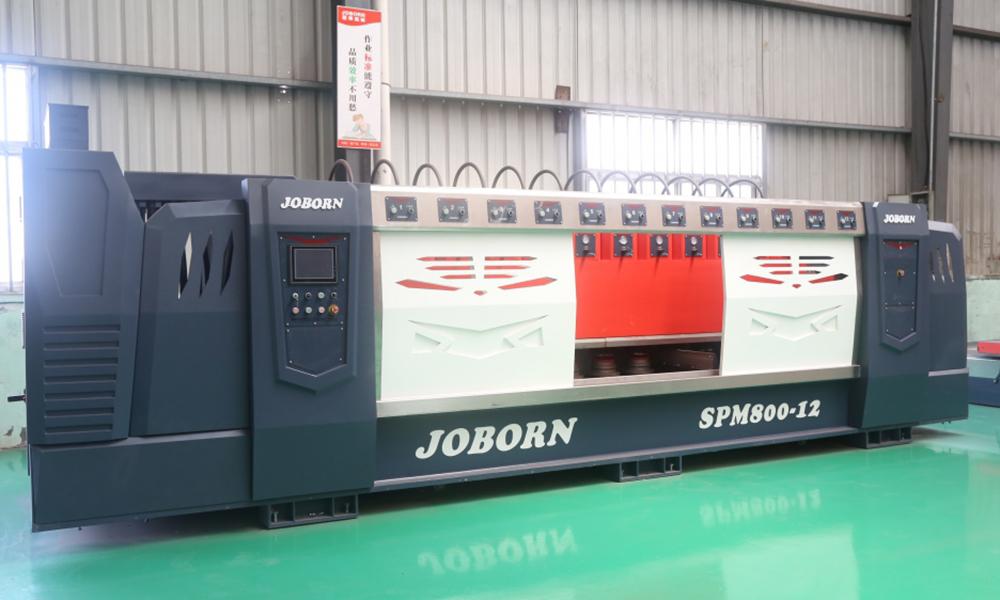

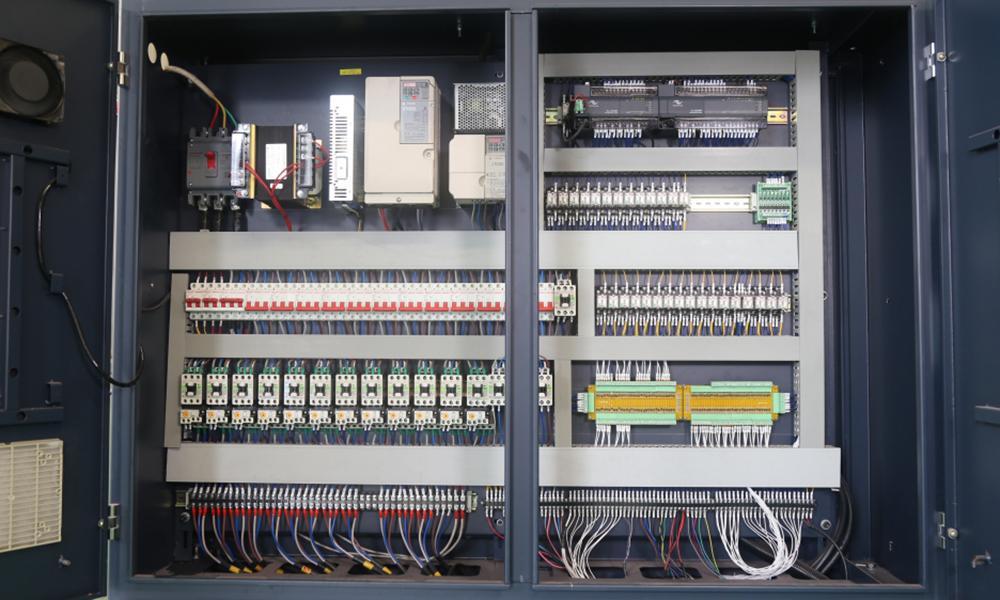

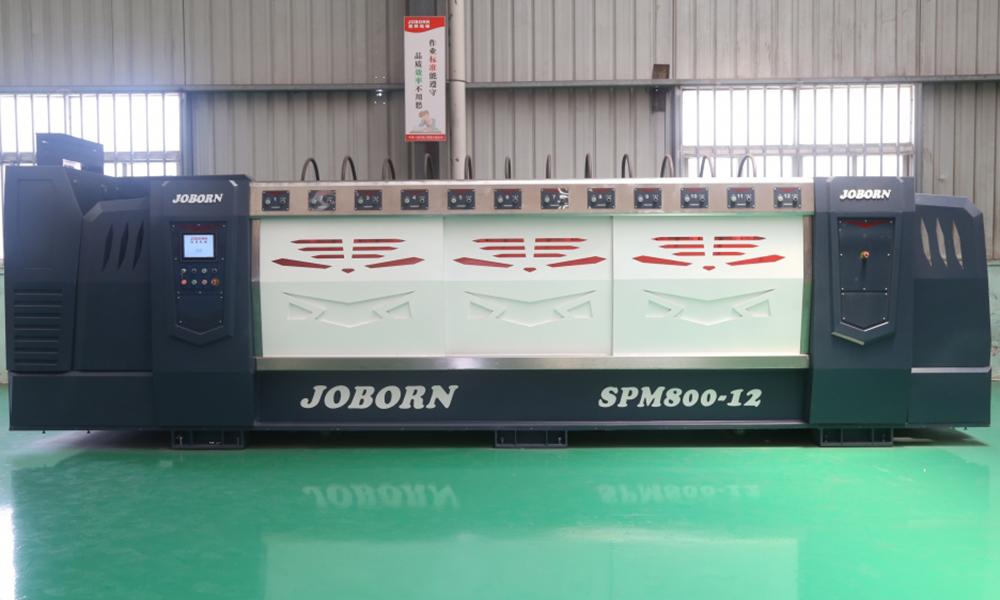

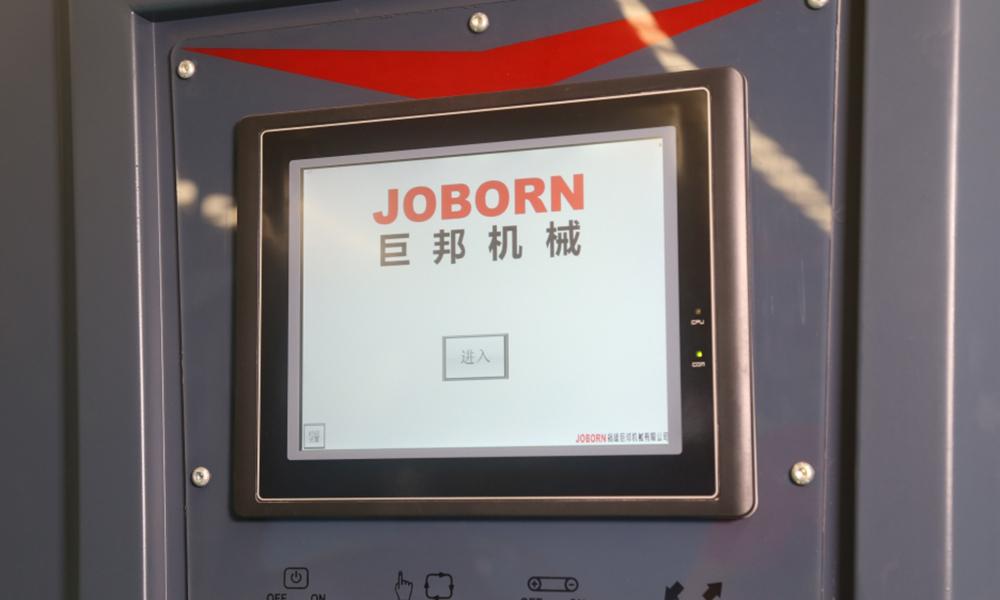

SPM Plus Series Automatic Marble Polishing Machine adopts a PLC intelligent control system and LCD touch screen to complete human-machine communication, enabling intelligent control.

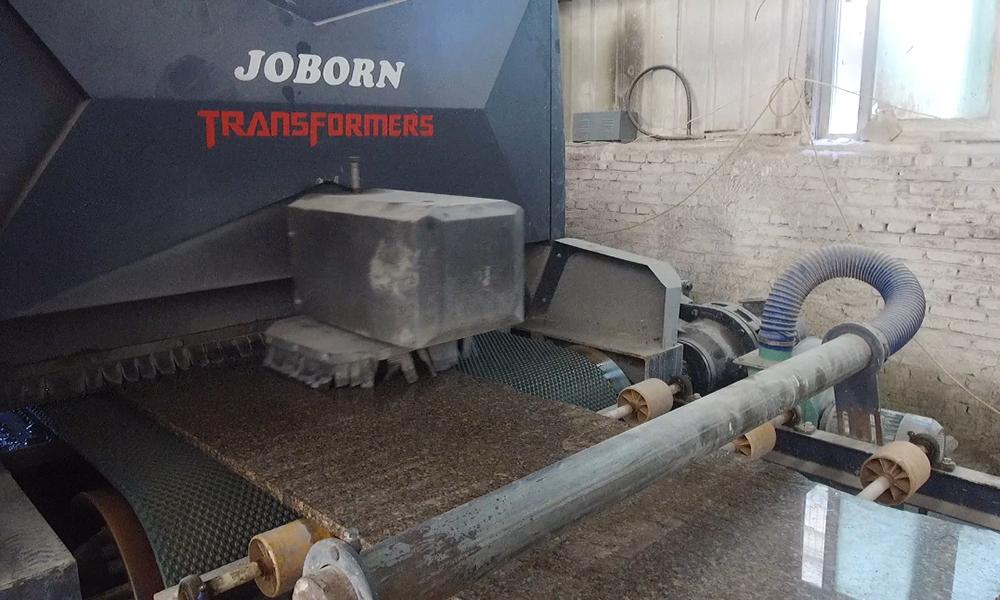

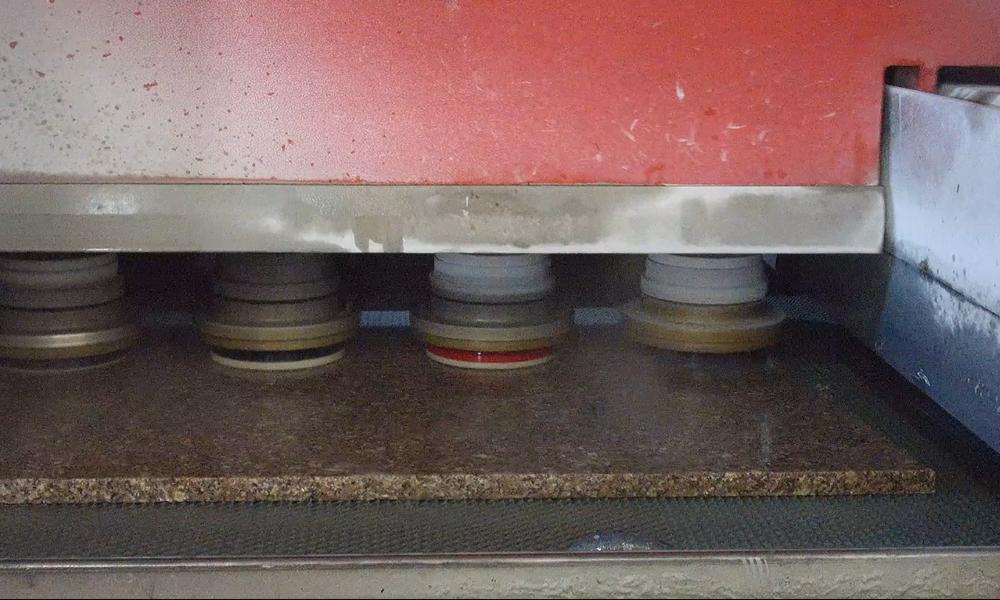

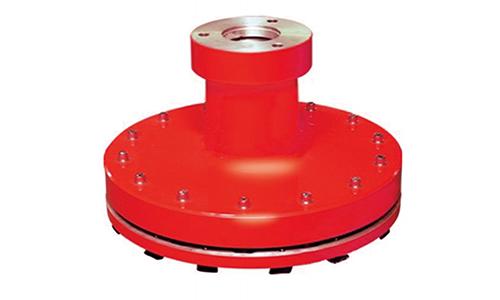

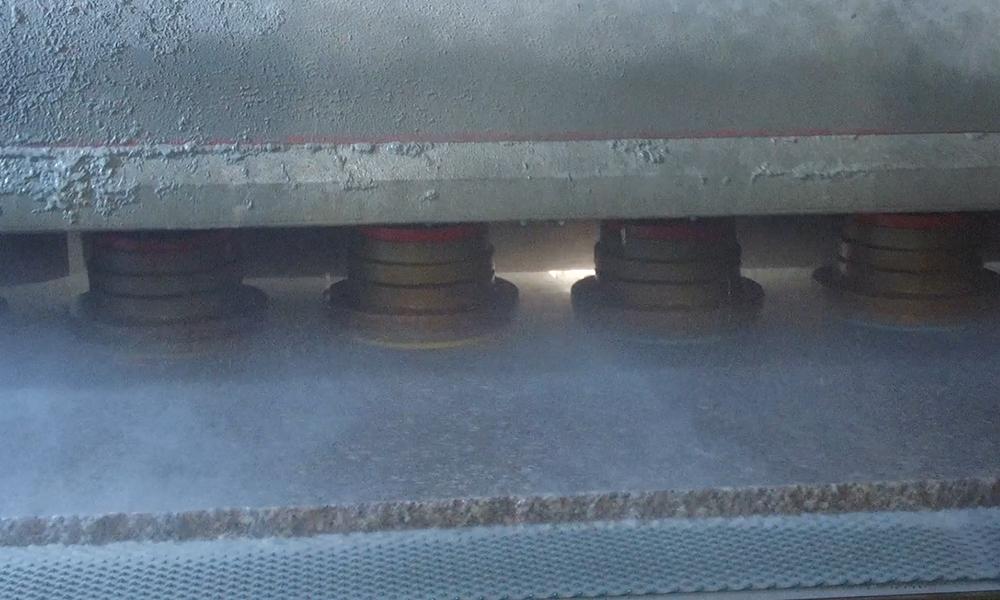

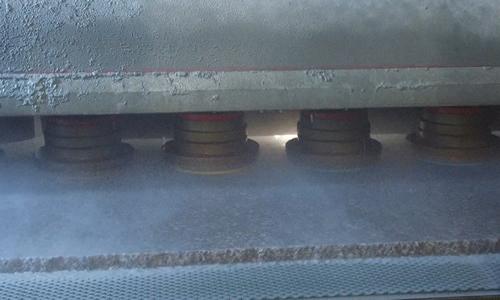

Equipped with a special elastic grinding head for marble, the machine has high polishing efficiency and good polishing quality.

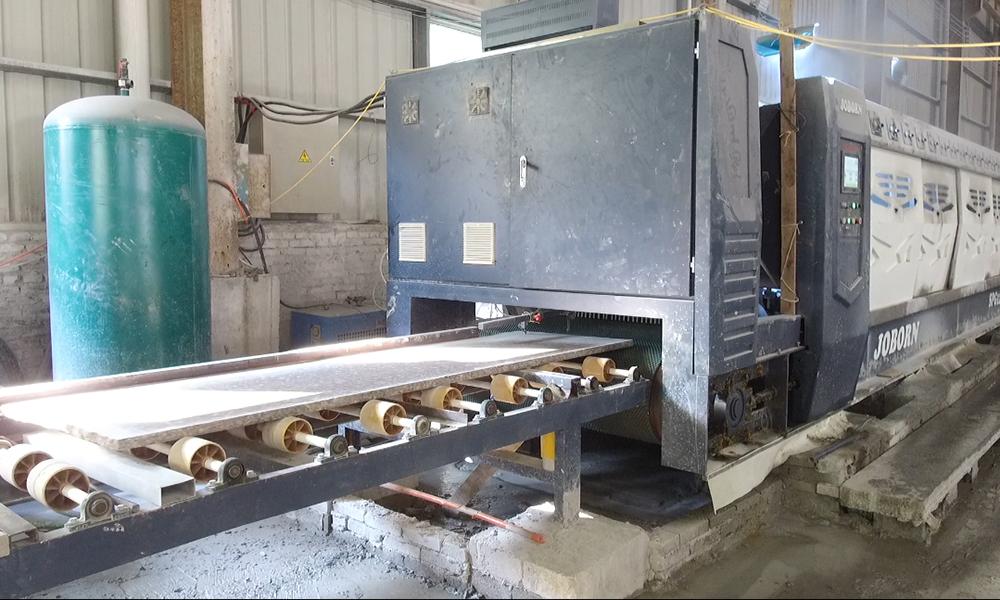

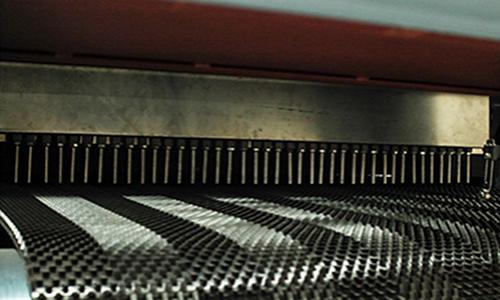

The grinding head has a slab shape memory function to keep avoid the uncut part automatically. The machine is equipped with a wear-resistant conveyor belt, which can prevent the stone from slipping.

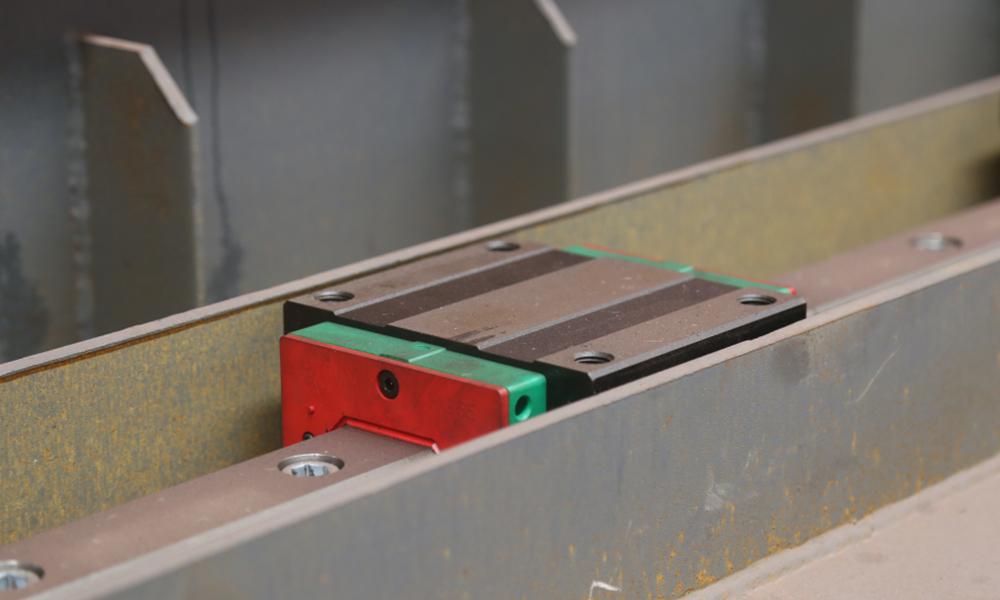

The side beam is designed with linear guide, making the polishing device moves easily on it.

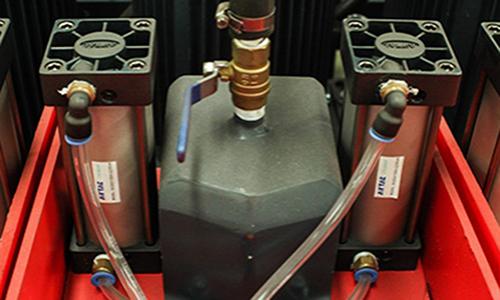

Pneumatic components made in Taiwan are equipped.

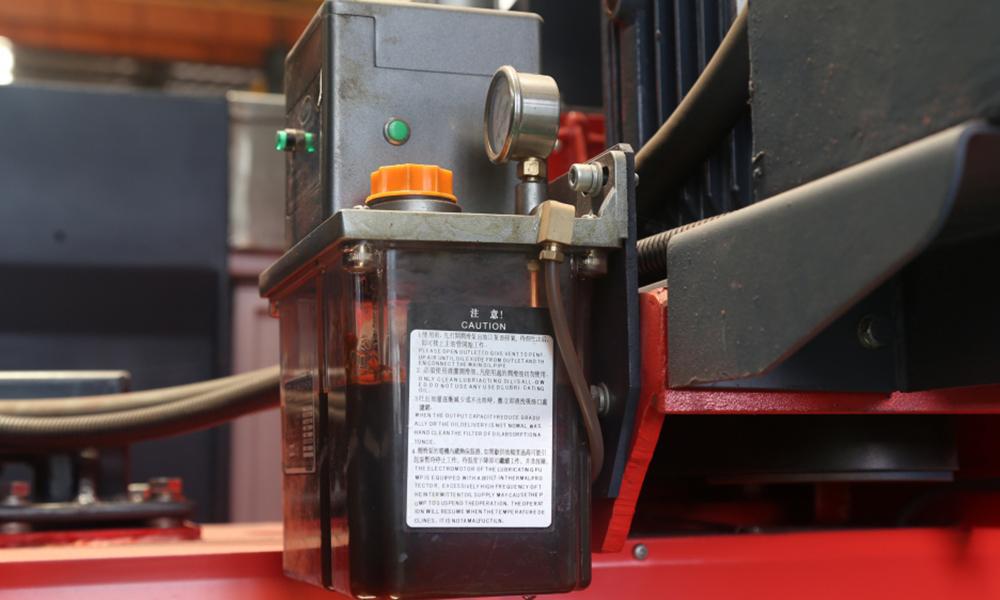

Oil transporting device: The grinding head, head stock, sliding sleeve and other key parts are lubricated automatically by the oil transporting device to guarantee the working safety of the equipment.

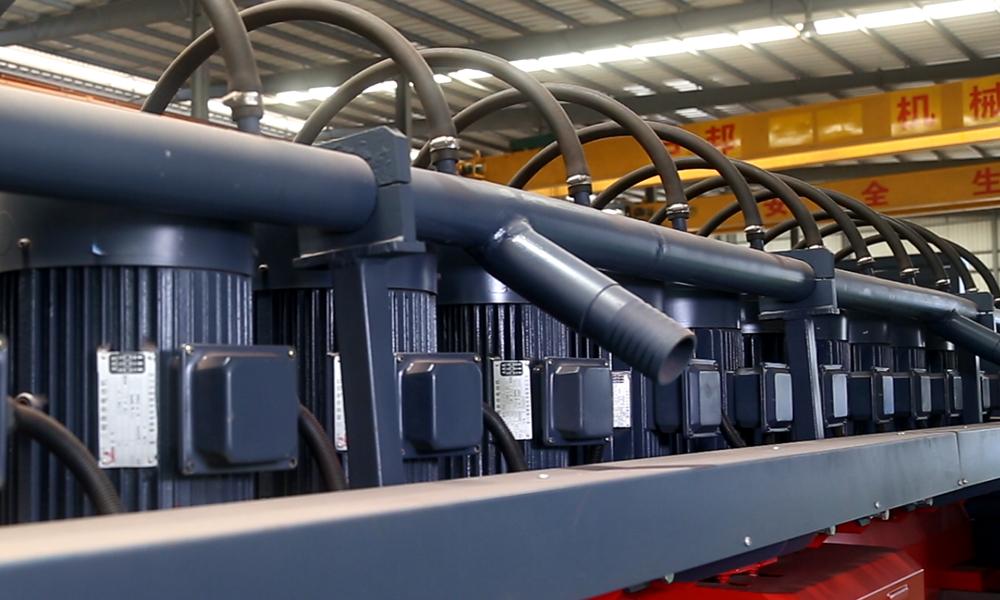

Motors: Multiple motors can be equipped according to customer requirements.
