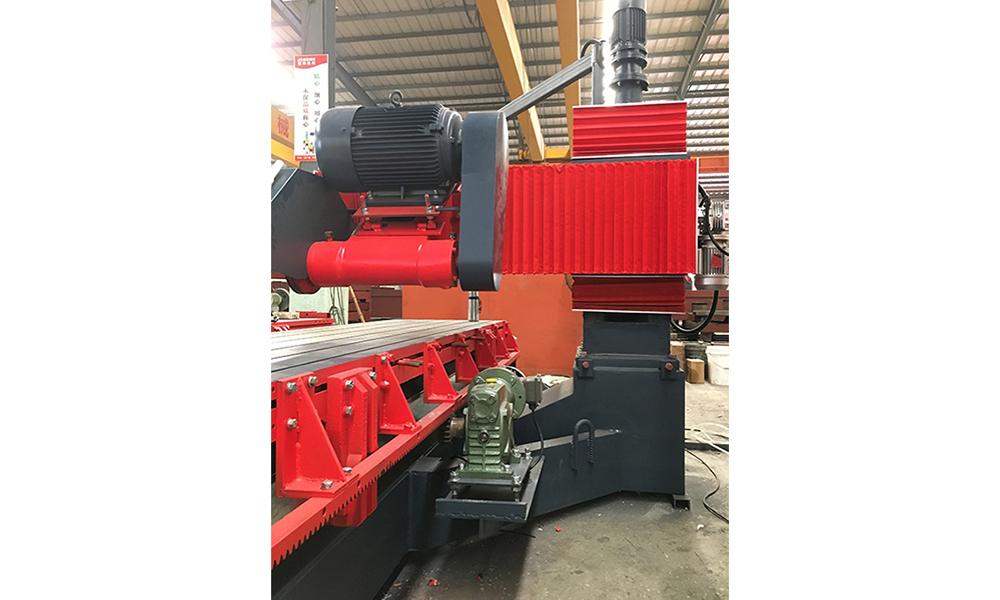

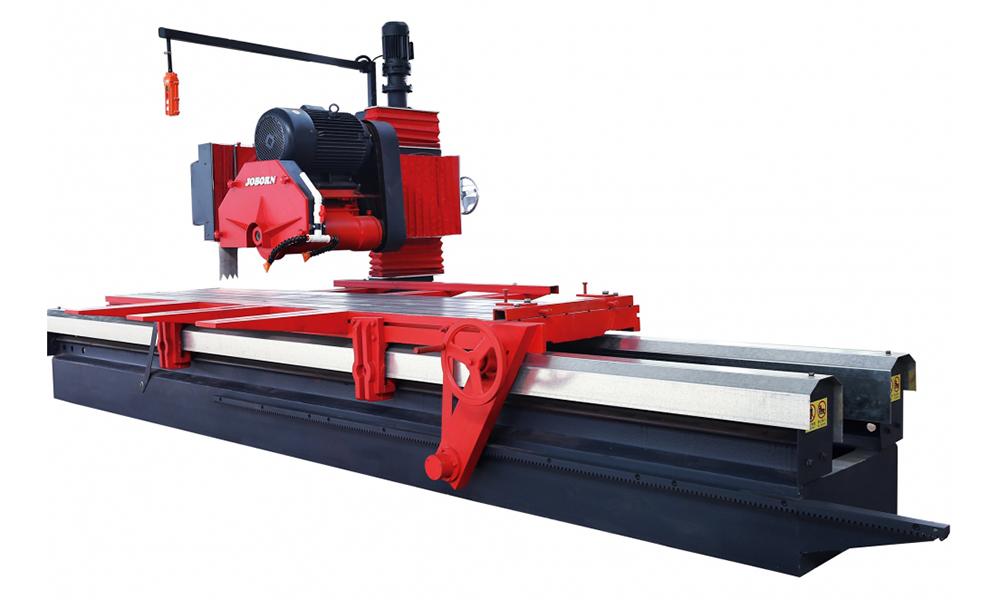

Adopting a cylinder as a lifting guide, the manual stone cutting machine lifts smoothly and automatically. The manual stone cutting machine is suitable for cutting edges and chamfers of small plates, strips and thick slabs with various thickness, and the maximum size it can process is 3000mm×750mm. the stone cutting machine has a cutting head which can be rotated at 180 degrees. It goes up and down under electrical control and left and right control is manual. The whole structure of the stone processing machine is compact, making it the best choice for small and medium-sized stone factories.

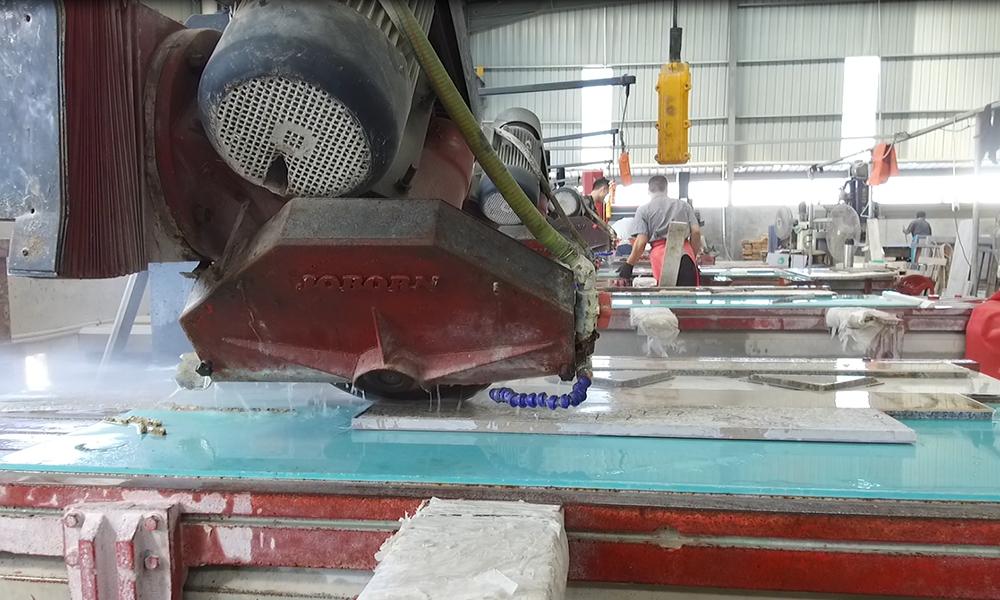

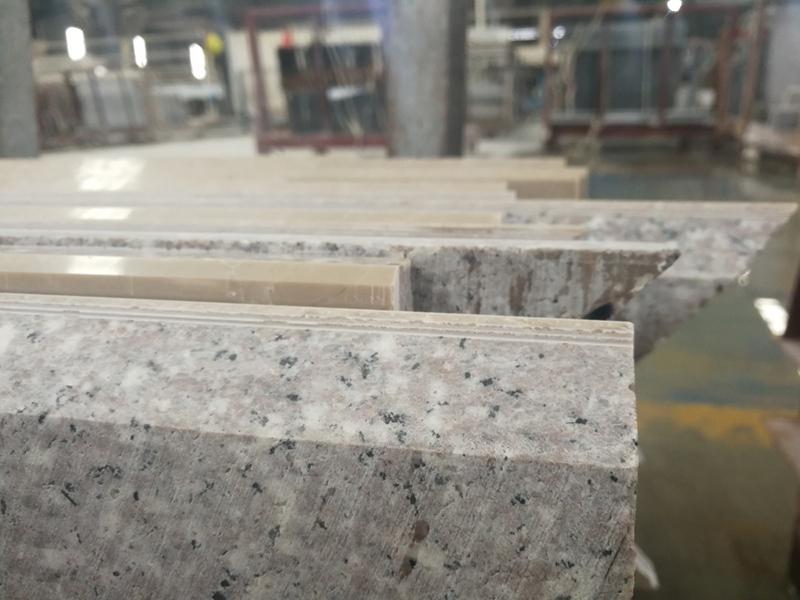

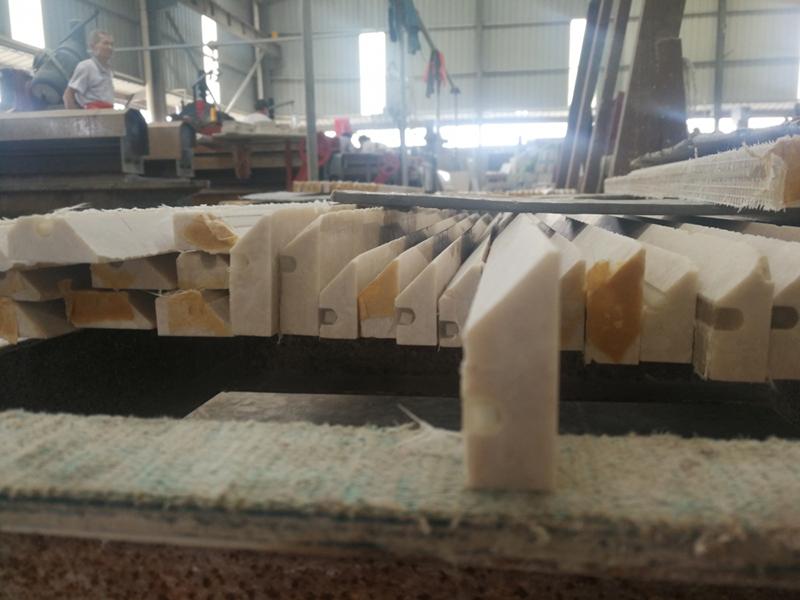

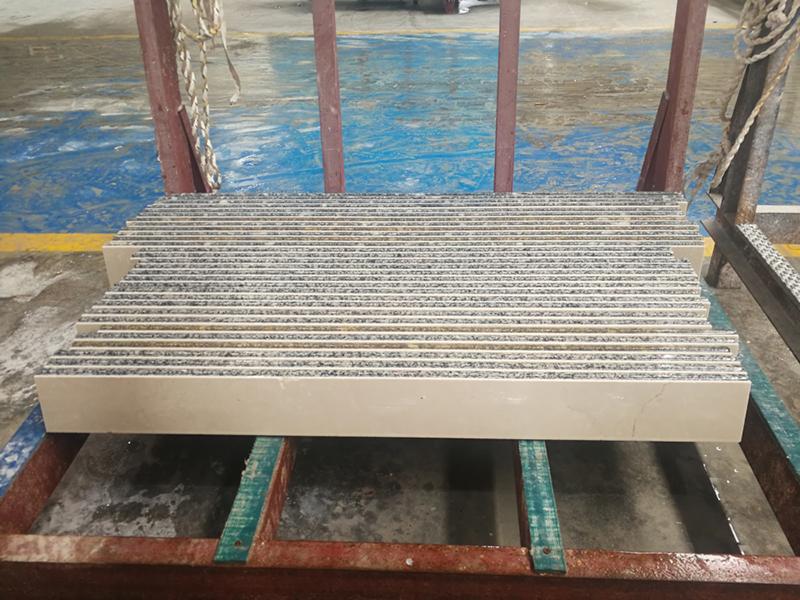

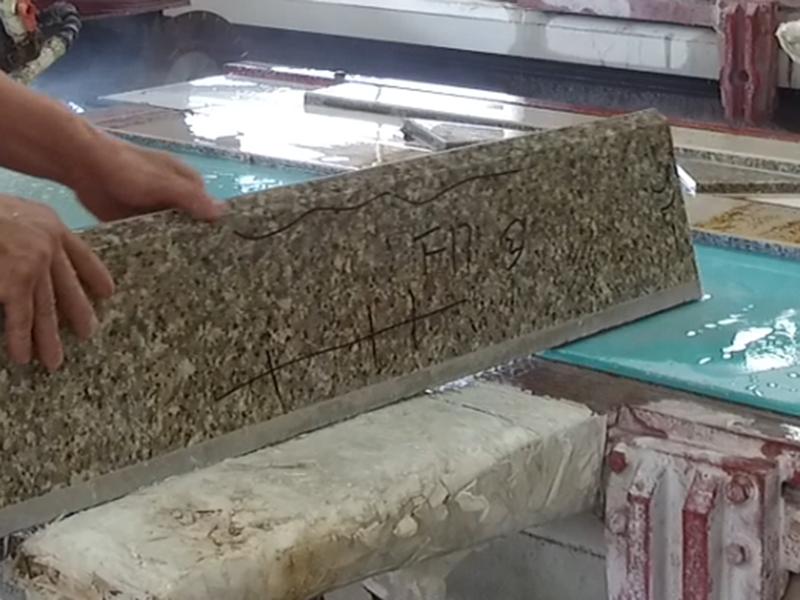

Cutting effectAppellation | Unit | SQA-600A | SQA-600B |
Max. disc diameter | mm | Φ600 | |
Max. lifting stroke | mm | 350 | |
Worktable size | mm | 3000×750 | 3500×750 |
Max. processing size | mm | 2700×1100/1200 | 3200×1100/1200 |
Water consumption | m³/h | 3 | |
Power of main motor | kW | 15/18.5 | |
Total power | kW | 16/19.5 | |
Dimension (LxWxH) | mm | 5500×2200×2250 | 6000×2200×2250 |
Weight | kg | 2800 | 3200 |
