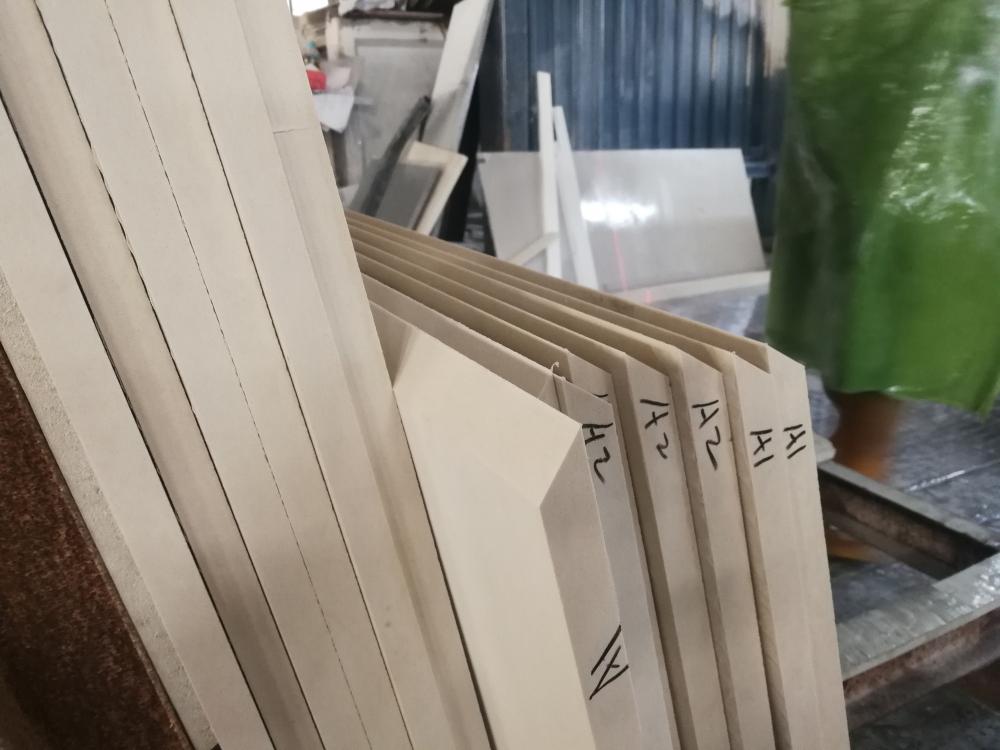

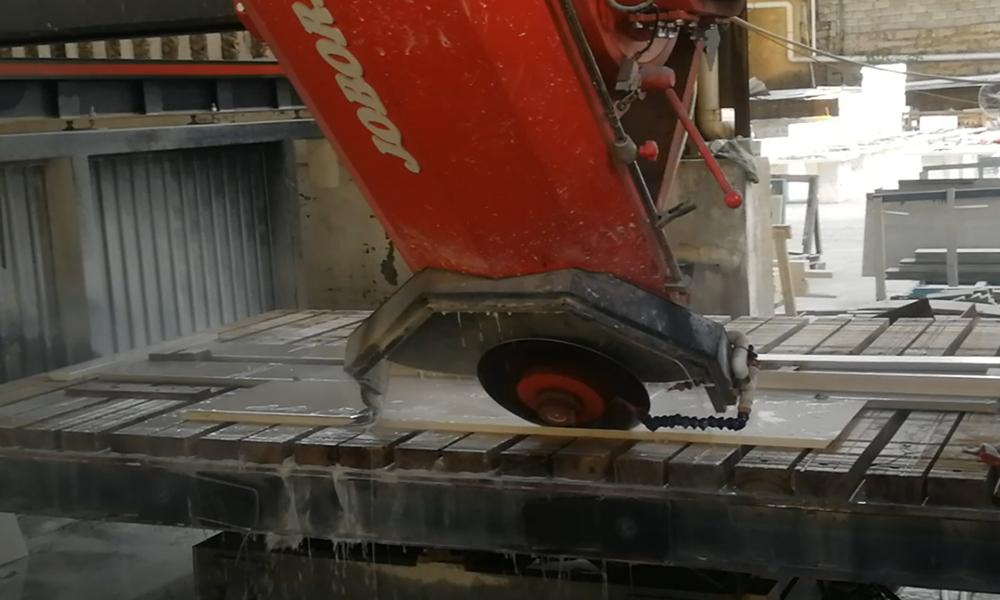

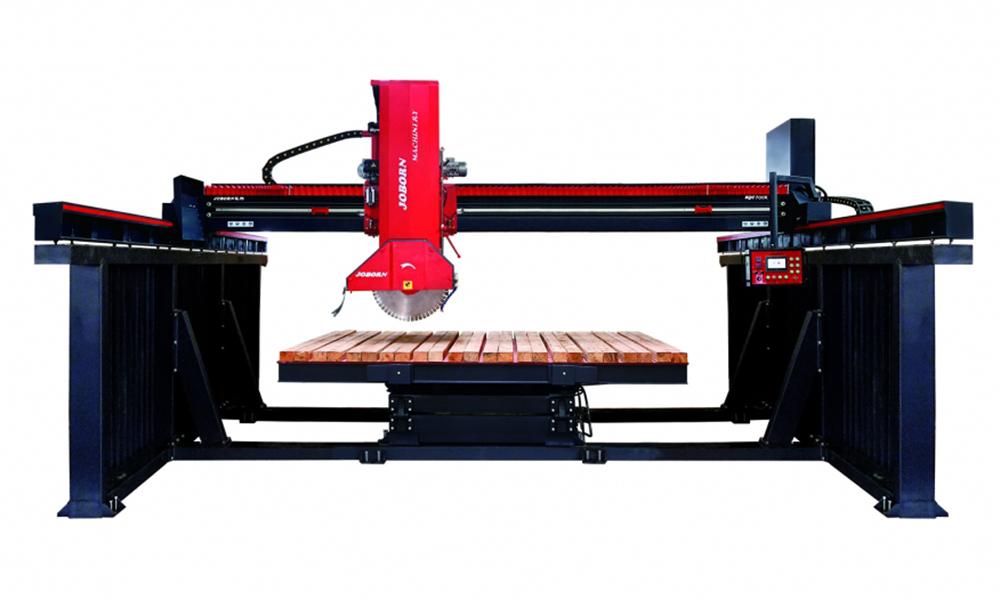

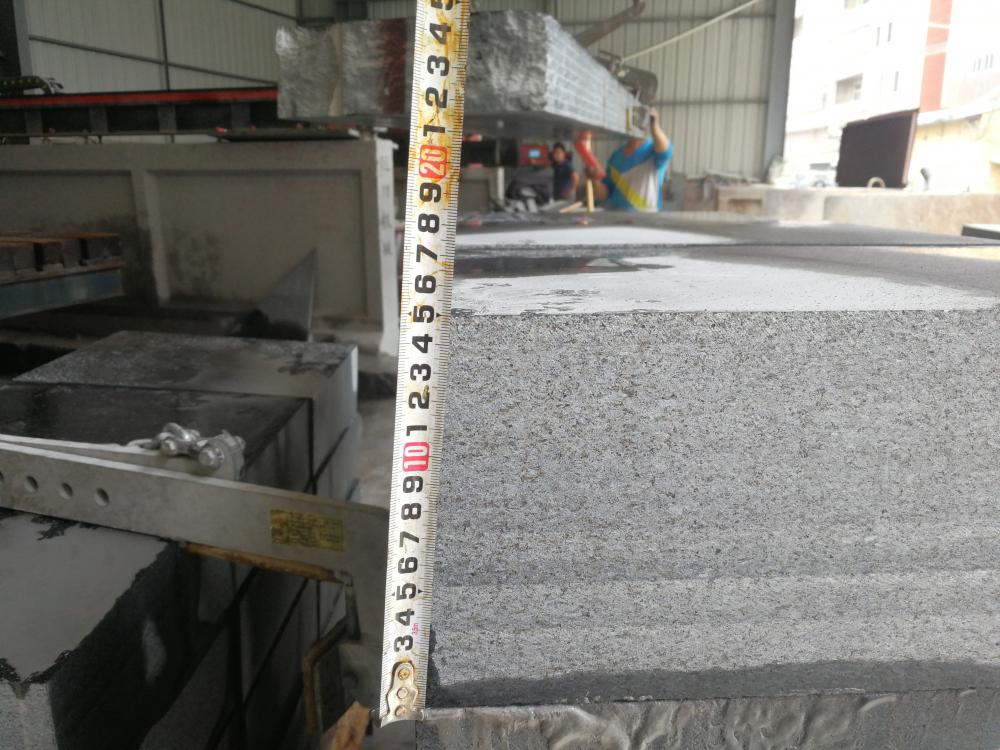

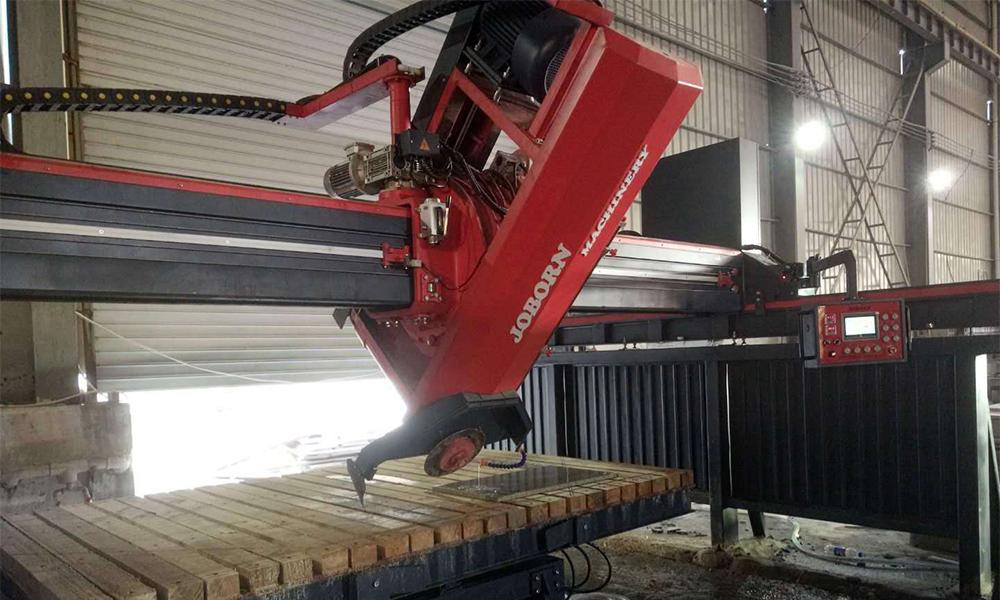

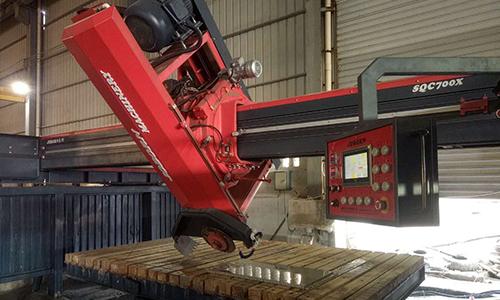

The 45 degree bridge stone cutting saw, granite cutting saw adopts a microcomputer control system and an intuitive interface. It uses an ultra-high precision rotational encoder and visual infrared laser alignment device to position workpieces. The cutting head of the bridge saw can be tilted to cut marble, granite and other special shaped stone.Cutting effect
|Max. disc diameter||mm||Φ700|
|Max. lifting stroke||mm||470|
|Worktable rotation range (Optional)||0°, 90° / 0°~360° (Set up by each 45°)|
|Worktable turn-over degree||85°|
|Max. processing height||mm||230|
|Power of main motor||kW||22|
|Weight||kg||5900 (6700kg includes steel stand)|

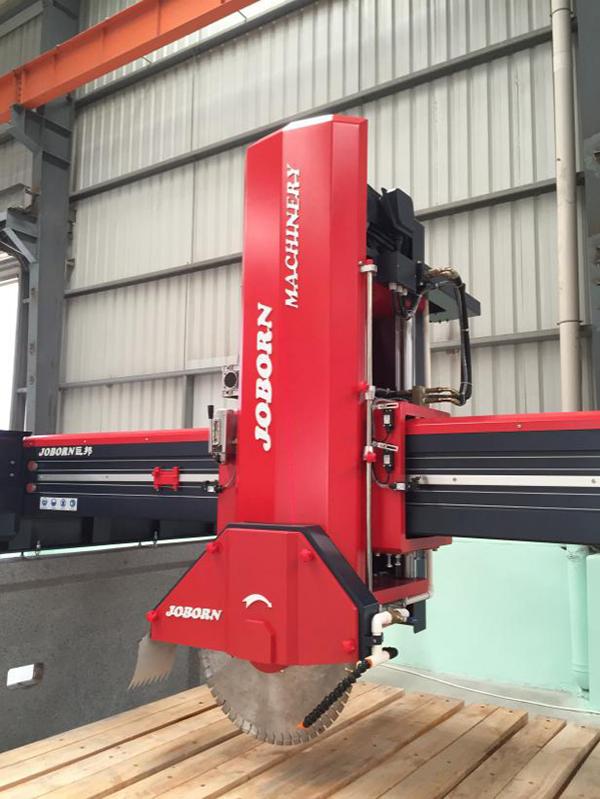

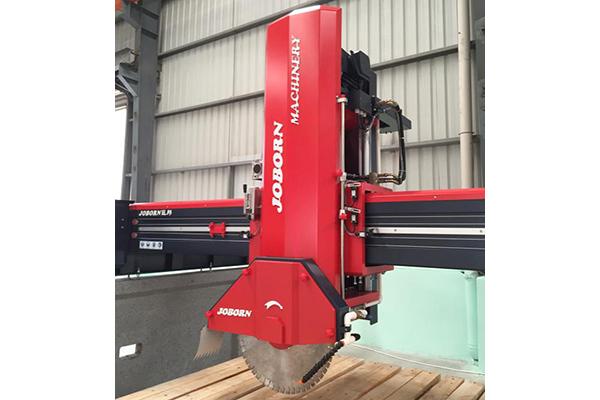

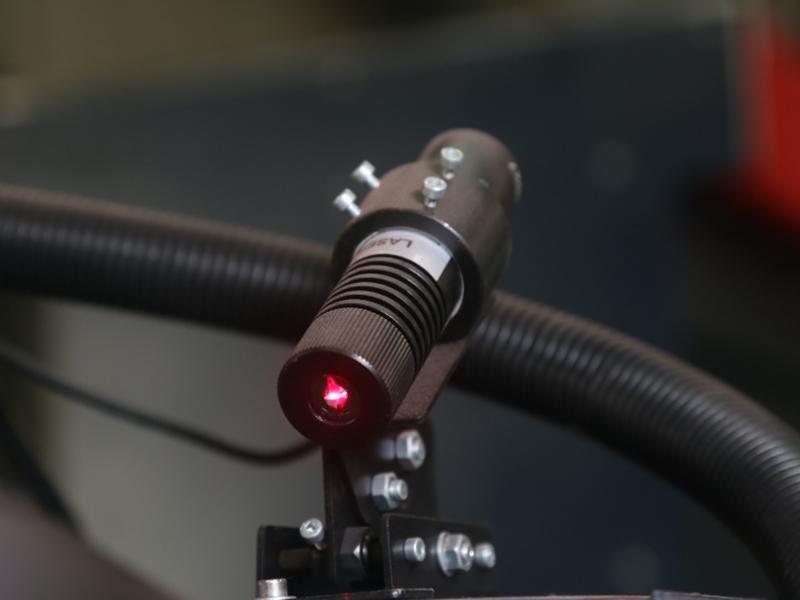

Tilting infrared laser alignment device

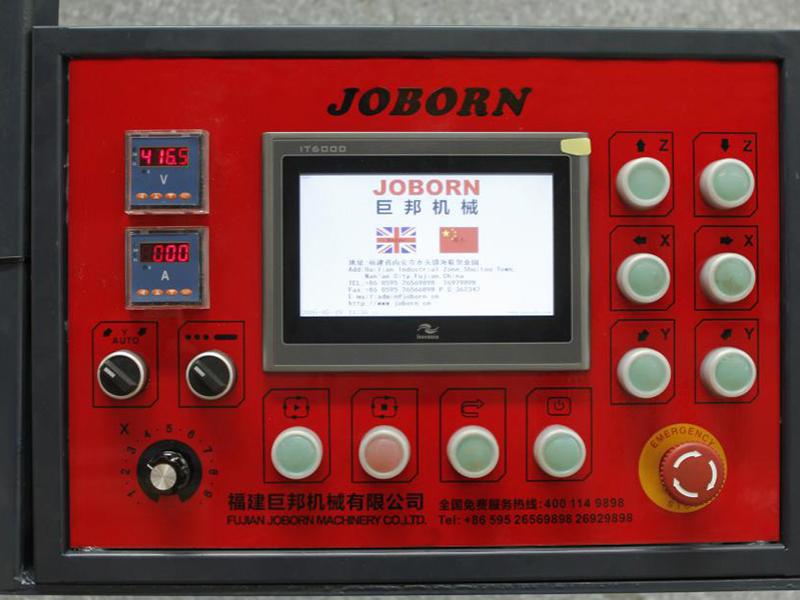

Human-machine communication interface
With a humanized human-computer interaction interface, the stone cutting bridge saw is simple to operate and highly precise.

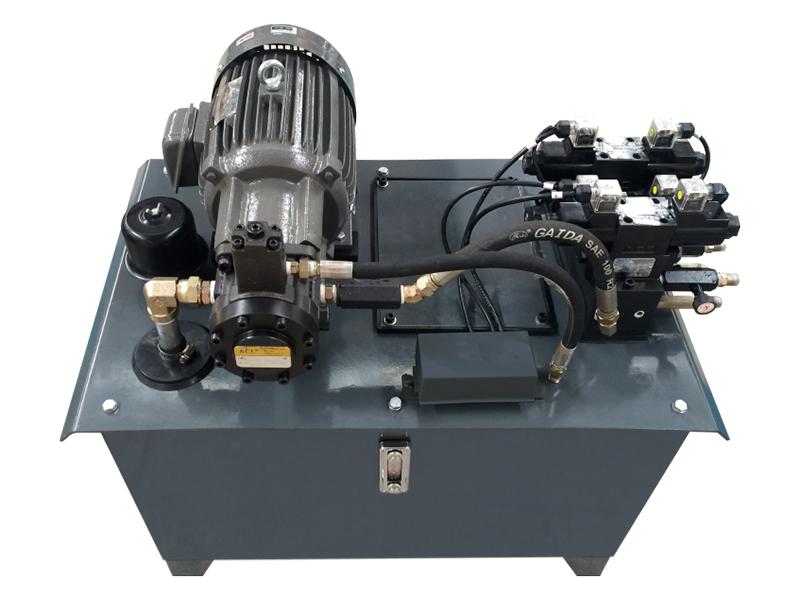

With the blade controlled by dual hydraulic system made in Taiwan to go up and down, the bridge saw works stably.

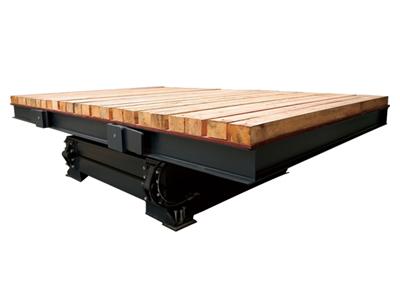

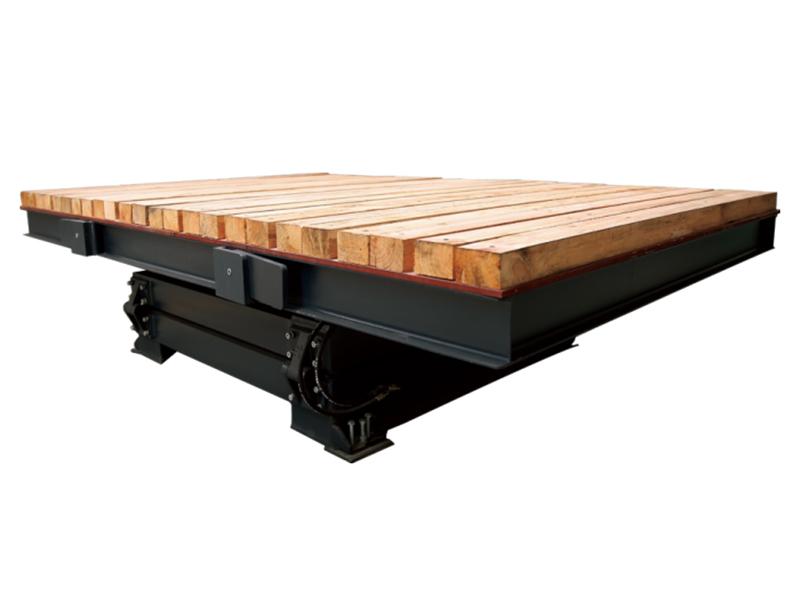

Super heavy large worktable
With the worktable welded from ultra-heavy structural sections, the worktable has a larger load capacity and is more durable compared to common worktables.

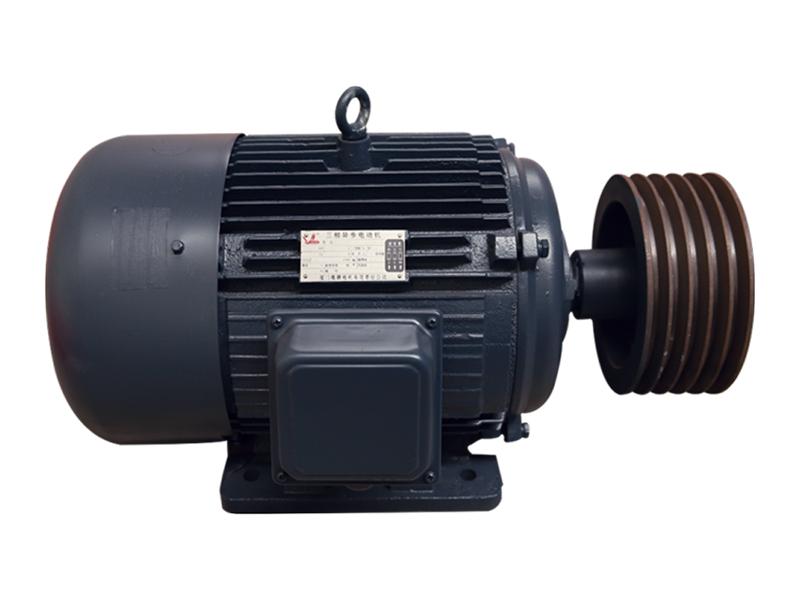

High efficiency main motor
With an energy-efficient main motor, the bridge saw is powerful and electricity saving, which saves cost for customers for long time use.

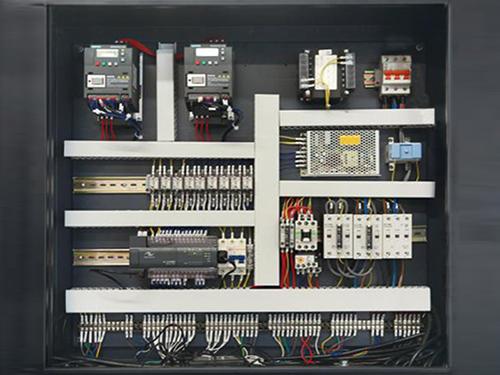

German Bosch frequency converter
Controlled by the German Bosch frequency converter to go left and right, the head can adjust speed according to different materials.

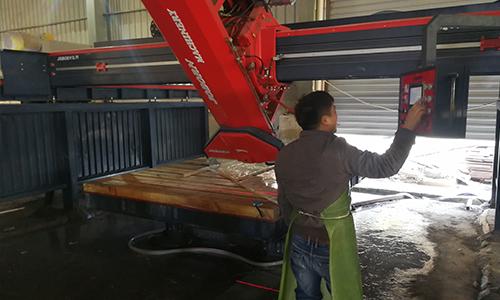

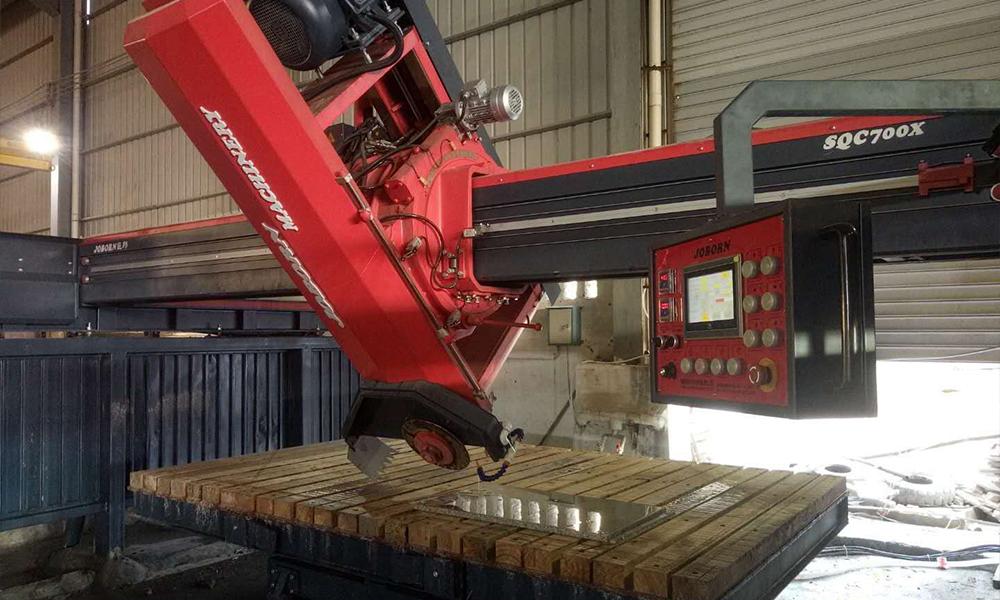

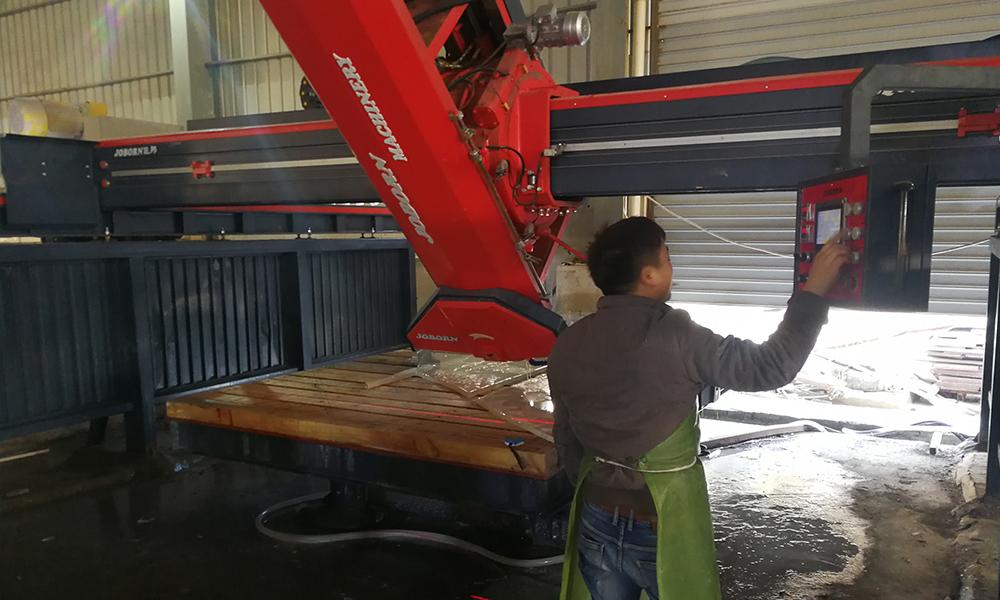

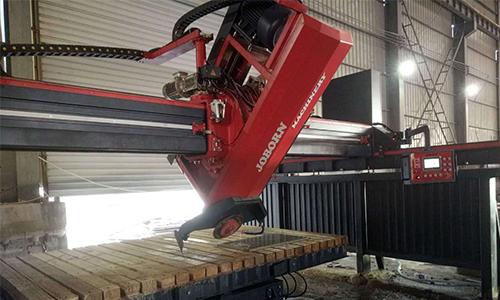

Designed by professional Italian industrial design team, with special paint and spray paint technology. A multi-layer antirust and anticorrosion treatment is applied, this kind of stone cutting machine has strong oxidation resistance.Used in our customer's factory
